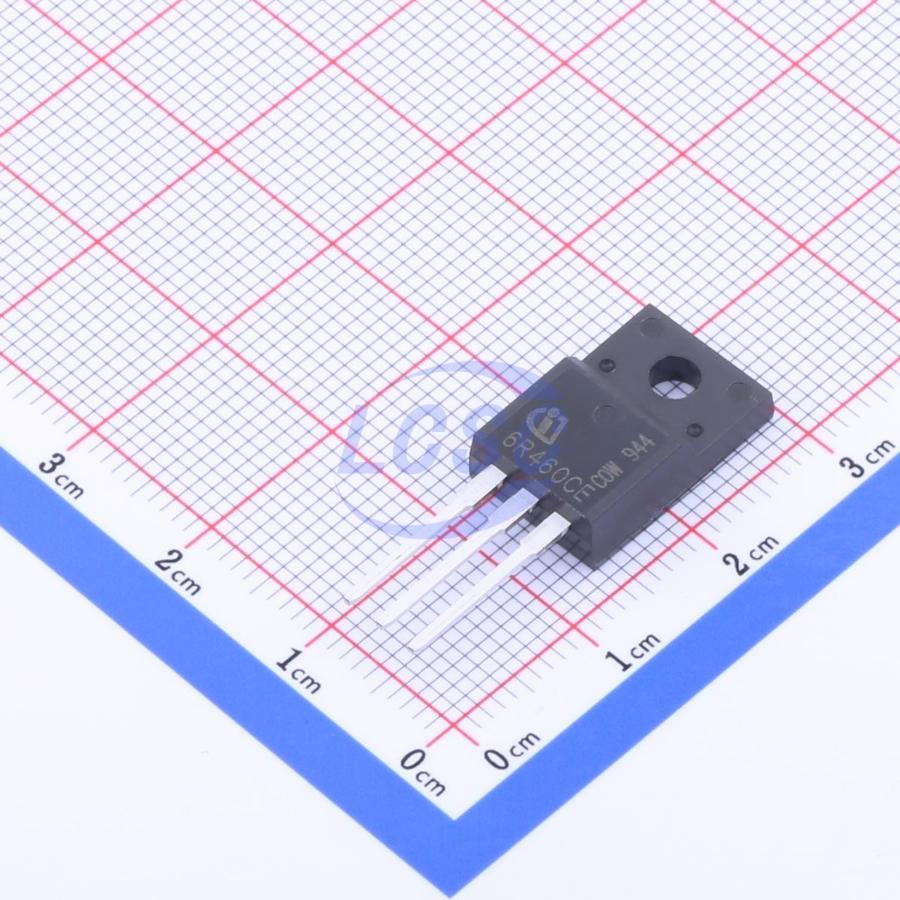

IPA60R460CE
650V 13.1A 30W Through Hole TO-220FP
TO-220FPROHS CompliantActive
MOSFET 650V 13.1A TO-220FP
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R460CE
- Store part #
- C536383
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86 in stock
#C536383
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.82 | ₹147.82 |
| 10+ | ₹121.48 | ₹1,214.80 |
| 50+ | ₹107.11 | ₹5,355.50 |
| 100+ | ₹90.78 | ₹9,078.00 |
| 500+ | ₹83.60 | ₹41,800.00 |
| 1,000+ | ₹80.33 | ₹80,330.00 |
1 × ₹147.82
₹147.82
excl. GST
₹174.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA60R460CE
₹147.82 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 41pF
- Ciss-Input Capacitance
- 620pF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 13.1A
- Reverse Transfer Capacitance (Crss)
- 121pF
- RDS(on)
- 460mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.884 g
Overview
CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS™ CE is a price-performance optimized platform enabling to target cost sensitive applications in Consumer and Lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching Superjunction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market.
Applications
- PFC stages, hard switching PWM stages and resonant switching stages for e.g. PC Silverbox, Adapter, LCD & PDP TV and indoor lighting.
Key features
- Extremely low losses due to very low FOM Rdson*Qg and Eoss
- Very high commutation ruggedness
- Easy to use/drive
- Pb-free plating, Halogen free mold compound
- Qualified for standard grade applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPA65R400CE#C501513Infineon · TO-220F | Infineon | TO-220F | 842 | ₹109.07 · 842 in stock | View |
 | IPA95R450P7#C536434Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 29 | ₹323.04 · 29 in stock | View |
 | IPA60R099P7XKSA1#C672156Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 100 | ₹638.64 · 100 in stock | View |
 | STF24N65M2#C2970244ST · TO-220FPAB-3 | ST | TO-220FPAB-3 | 31 | ₹178.14 · 31 in stock | View |
 | ASA60R280E#C5439999ANHI · TO-220F | ANHI | TO-220F | 1 | ₹90.82 · 1 in stock | View |
