InfineonDatasheet (PDF)

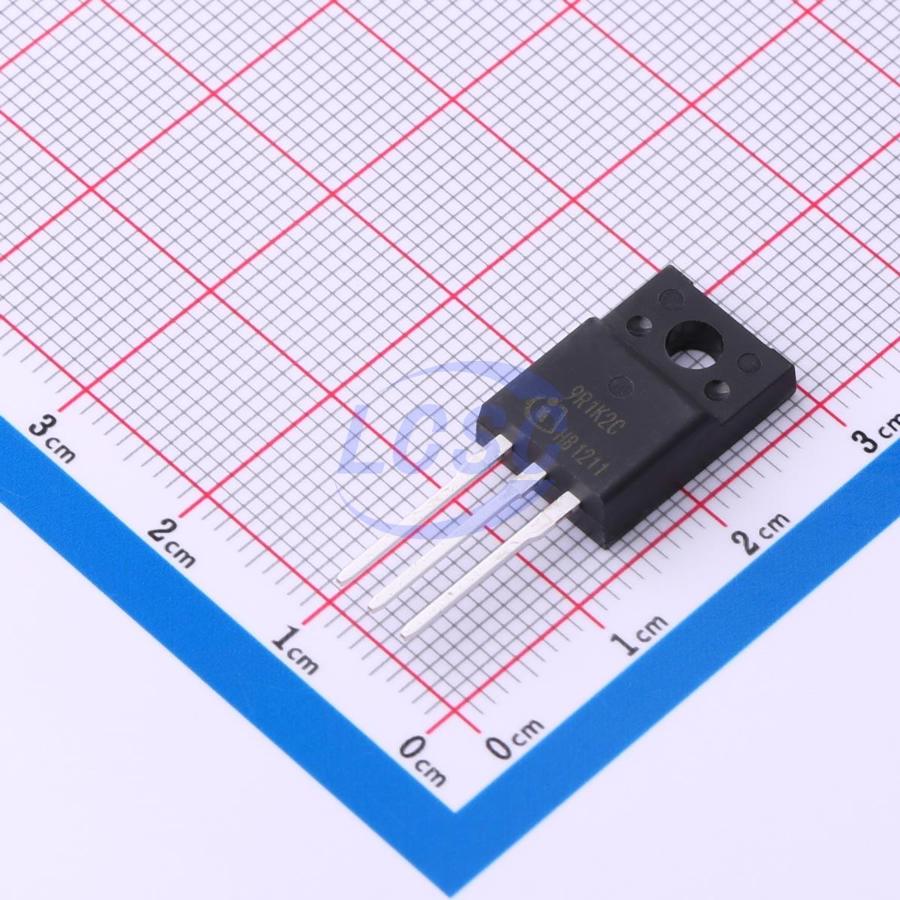

IPA90R1K2C3
900V 5.1A 31W 1.2Ω@10V 1 N-channel N-Channel TO-220-FP Single FETs, MOSFETs RoHS
TO-220-FPROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPA90R1K2C3
- Store part #
- C3289015
- Package / case
- TO-220-FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C3289015
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹298.56 | ₹298.56 |
| 10+ | ₹254.11 | ₹2,541.10 |
| 30+ | ₹226.14 | ₹6,784.20 |
| 100+ | ₹188.63 | ₹18,863.00 |
| 500+ | ₹175.84 | ₹87,920.00 |
| 1,000+ | ₹170.20 | ₹1,70,200.00 |
1 × ₹298.56
₹298.56
excl. GST
₹352.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPA90R1K2C3
₹298.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 900V
- Output Capacitance(Coss)
- 35pF
- Current - Continuous Drain(Id)
- 5.1A
- Ciss-Input Capacitance
- 710pF
- Pd - Power Dissipation
- 31W
- RDS(on)
- 1.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.5 g
Overview
Applications
- Quasi Resonant Flyback / Forward topologies
- PC Silverbox and consumer applications
- Industrial SMPS
Key features
- Lowest figure-of-merit RON×Qg
- Extreme dv/dt rated
- High peak current capability
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
- Ultra low gate charge
