InfineonDatasheet (PDF)

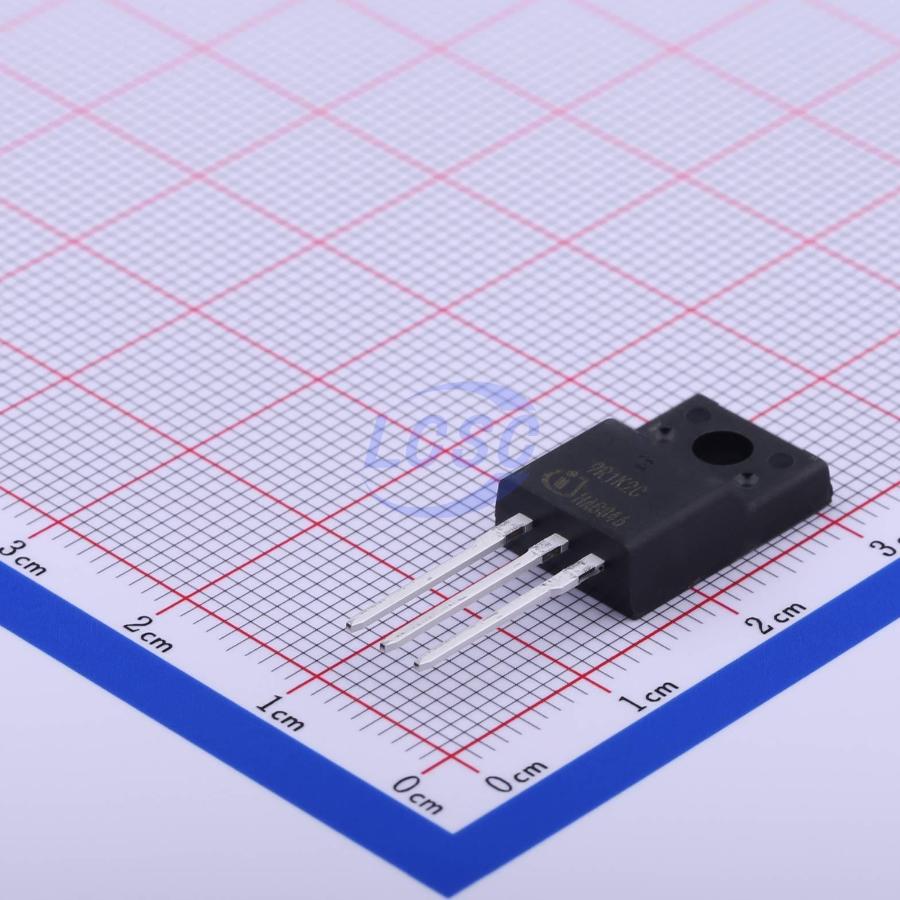

IPA90R1K2C3
N-Channel 900V 10A 31W Through Hole TO-220FP
TO-220FPROHS CompliantSold out at source
MOSFET N-CH 900V 10A TO-220FP
- Manufacturer
- Infineon
- Manufacturer part #
- IPA90R1K2C3
- Store part #
- C386369
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C386369
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹286.40 | ₹286.40 |
| 10+ | ₹243.17 | ₹2,431.70 |
| 50+ | ₹215.99 | ₹10,799.50 |
| 100+ | ₹188.18 | ₹18,818.00 |
| 500+ | ₹175.59 | ₹87,795.00 |
| 1,000+ | ₹170.15 | ₹1,70,150.00 |
1 × ₹286.40
₹286.40
excl. GST
₹337.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA90R1K2C3
₹286.40 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 900V
- Output Capacitance(Coss)
- 35pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 710pF
- Pd - Power Dissipation
- 31W
- RDS(on)
- 1.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.02 g
Overview
Applications
- Quasi Resonant Flyback / Forward topologies
- PC Silverbox and consumer applications
- Industrial SMPS
Key features
- Lowest figure-of-merit RON×Qg
- Extreme dv/dt rated
- High peak current capability
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
- Ultra low gate charge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPA90R1K2C3#C3289015Infineon · TO-220-FP | Infineon | TO-220-FP | 44 | ₹298.56 · 44 in stock | View |
 | IPA90R500C3#C536432Infineon · TO-220FP | Infineon | TO-220FP | 23 | ₹570.74 · 23 in stock | View |
 | STF16N90K5#C5199072ST · TO-220FP | ST | TO-220FP | 8 | ₹1,134.99 · 8 in stock | View |
 | IPA95R450P7#C536434Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 29 | ₹323.04 · 29 in stock | View |
 | STF15N95K5#C2969924ST · TO-220FP | ST | TO-220FP | 116 | ₹536.95 · 116 in stock | View |
