InfineonDatasheet (PDF)

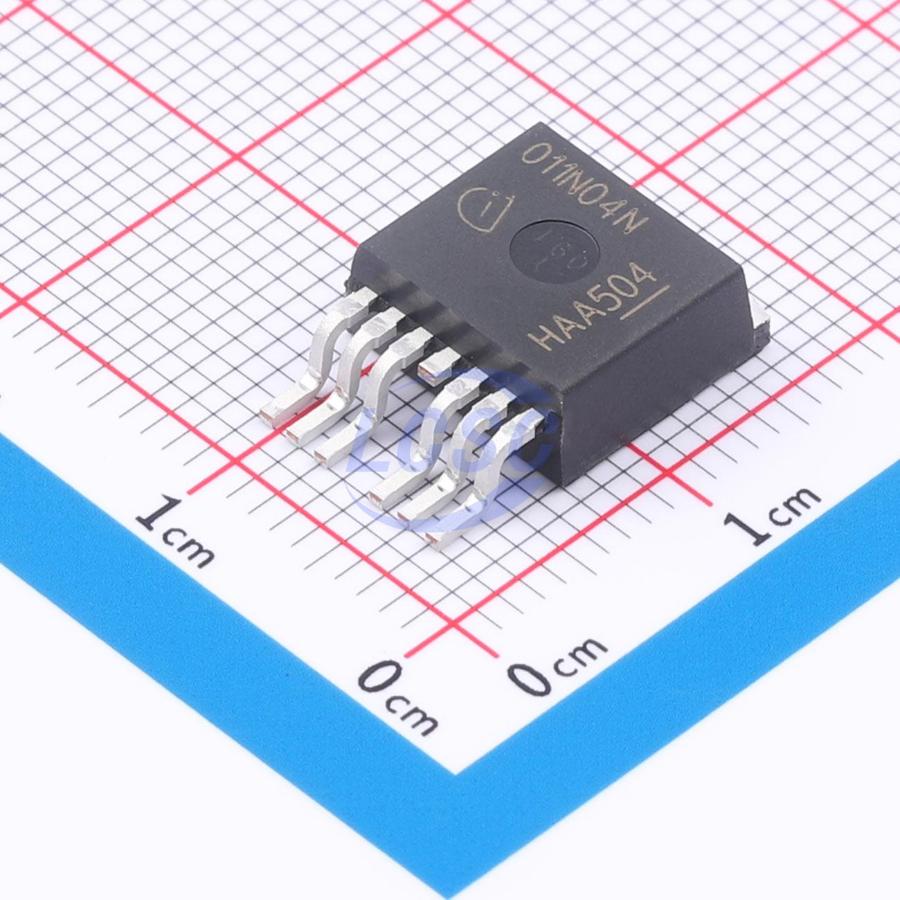

IPB011N04N G
250W 40V 180A 0.9mΩ@10V 1 N-channel N-Channel TO-263-7 Single FETs, MOSFETs RoHS
TO-263-7ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB011N04N G
- Store part #
- C536472
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C536472
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹960.35 | ₹960.35 |
| 10+ | ₹865.14 | ₹8,651.40 |
| 30+ | ₹808.60 | ₹24,258.00 |
| 100+ | ₹751.21 | ₹75,121.00 |
| 500+ | ₹724.78 | ₹3,62,390.00 |
| 1,000+ | ₹712.95 | ₹7,12,950.00 |
1 × ₹960.35
₹960.35
excl. GST
₹1,133.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB011N04N G
₹960.35 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 4nF
- Ciss-Input Capacitance
- 16nF
- Pd - Power Dissipation
- 250W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 180A
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 0.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 188nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.907 g
Overview
Key features
- MOSFET for OR-ing and UPS applications
- JEDEC-compliant for target applications
- N-channel
- Normal level
- Ultra-low on-resistance RDS(on)
- Avalanche rated
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB180N04S4H0ATMA1#C7210838Infineon · TO-263-7-3 | Infineon | TO-263-7-3 | 20 | ₹428.29 · 20 in stock | View |
 | IPB180N04S4-H0#C46467671Infineon · TO-263-7-3 | Infineon | TO-263-7-3 | 2 | ₹309.44 · 2 in stock | View |
| FDB0250N807L#C463236onsemi · TO-263-7 | onsemi | TO-263-7 | 15 | ₹1,135.31 · 15 in stock | View | |
 | IPB017N06N3 G#C536477Infineon · TO-263-7 | Infineon | TO-263-7 | 3 | ₹539.93 · 3 in stock | View |
 | IRFS7734TRL7PP#C538037Infineon · TO-263-7 | Infineon | TO-263-7 | 20 | ₹385.22 · 20 in stock | View |
