InfineonDatasheet (PDF)

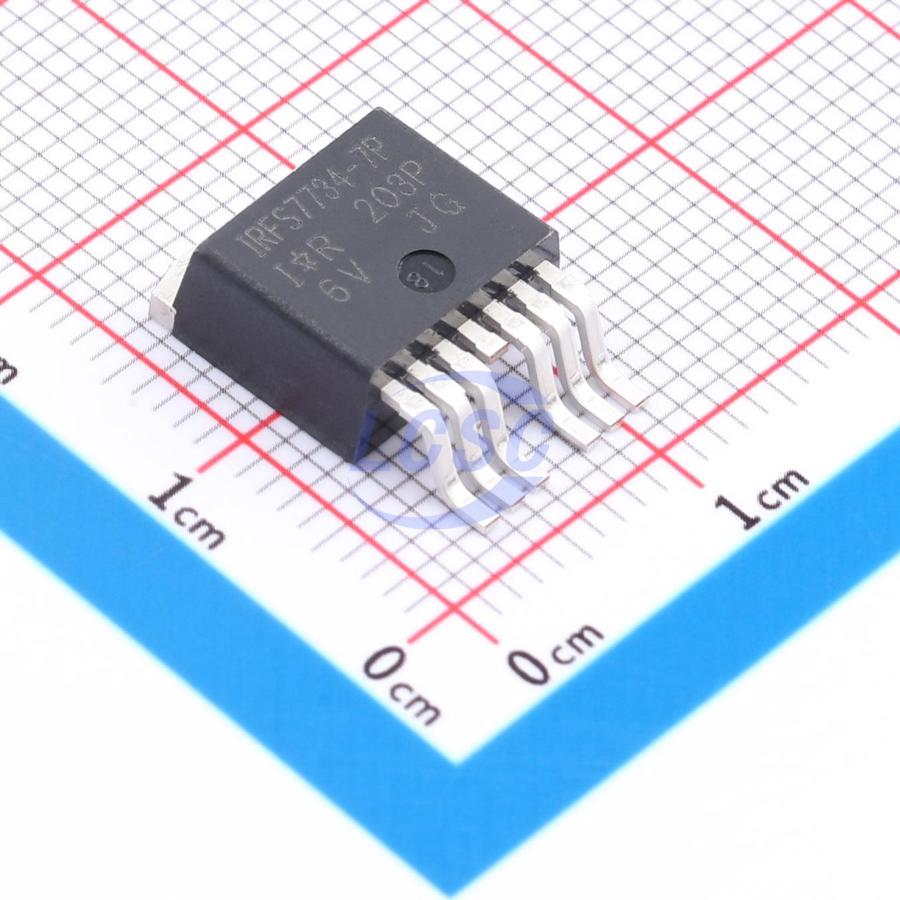

IRFS7734TRL7PP
N-Channel 75V 197A 294W TO-263-7
TO-263-7ROHS CompliantActive
MOSFET N-CH 75V 197A TO-263-7
- Manufacturer
- Infineon
- Manufacturer part #
- IRFS7734TRL7PP
- Store part #
- C538037
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C538037
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹385.22 | ₹385.22 |
| 10+ | ₹376.84 | ₹3,768.40 |
| 30+ | ₹371.27 | ₹11,138.10 |
| 100+ | ₹365.69 | ₹36,569.00 |
1 × ₹385.22
₹385.22
excl. GST
₹454.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFS7734TRL7PP
₹385.22 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 820pF
- Ciss-Input Capacitance
- 10.13nF
- Pd - Power Dissipation
- 294W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 197A
- Reverse Transfer Capacitance (Crss)
- 506pF
- RDS(on)
- 2.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 180nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.925 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free, RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB025N10N3G(TOKMAS)#C21547647Tokmas · TO-263-7L | Tokmas | TO-263-7L | 755 | ₹226.01 · 755 in stock | View |
 | IPB024N10N5#C536487Infineon · TO-263-7 | Infineon | TO-263-7 | 16 | ₹656.21 · 16 in stock | View |
 | CMB029N10-7#C52118366Cmos · TO-263-7 | Cmos | TO-263-7 | 790 | ₹172.59 · 790 in stock | View |
 | STH310N10F7-6-VB#C47993734VBsemi Elec · TO-263-7 | VBsemi Elec | TO-263-7 | 5 | ₹510.28 · 5 in stock | View |
 | IPF016N10NF2SATMA1-VB#C47993812VBsemi Elec · D2PAK(TO-263-7L) | VBsemi Elec | D2PAK(TO-263-7L) | 3 | ₹452.81 · 3 in stock | View |
