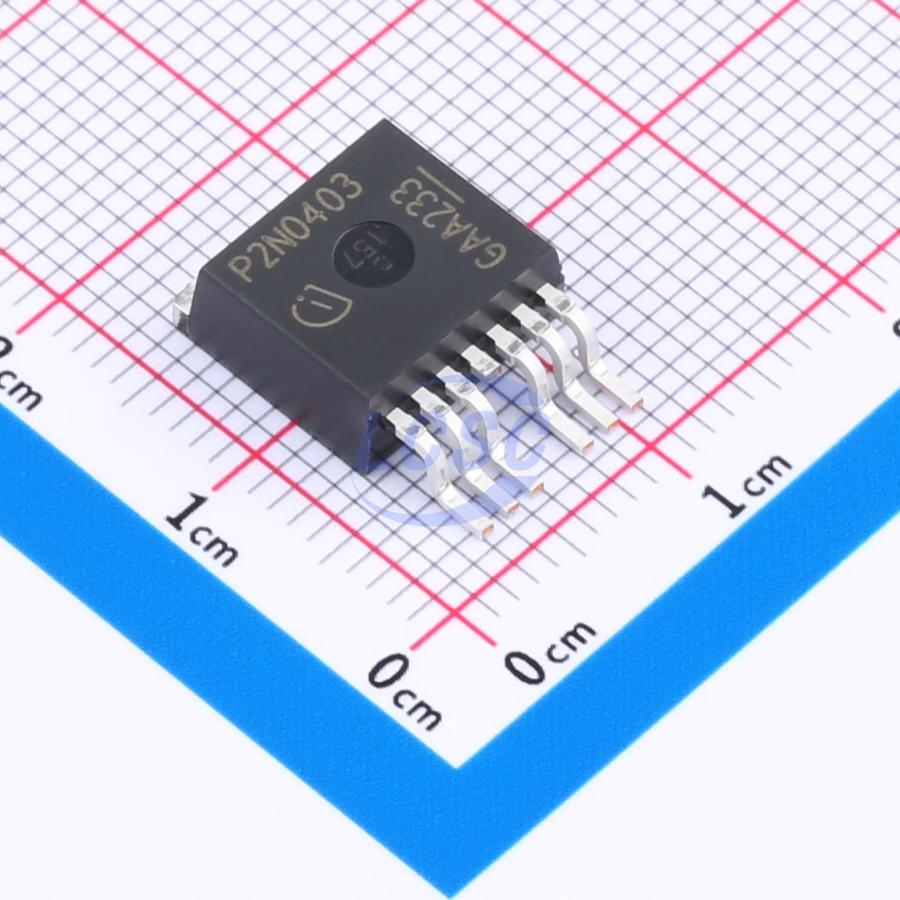

InfineonDatasheet (PDF)
IPB160N04S203
N-Channel 40V 160A 300W Surface Mount TO-263-7-3
TO-263-7-3ROHS CompliantActive
MOSFET N-CH 40V 160A TO-263-7-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPB160N04S203
- Store part #
- C3279270
- Package / case
- TO-263-7-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C3279270
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹771.11 | ₹771.11 |
1 × ₹771.11
₹771.11
excl. GST
₹909.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB160N04S203
₹771.11 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.15nF
- Ciss-Input Capacitance
- 5.3nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 160A
- Reverse Transfer Capacitance (Crss)
- 580pF
- RDS(on)
- 2.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 170nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
650V CoolMOS CFD7A integrates a fast body diode, suitable for PFC and resonant switching topologies such as ZVS phase-shifted full bridge and LLC topologies.
Applications
- Unidirectional and bidirectional DC-DC converters
- On-board battery chargers
Key features
- N-channel - Enhancement mode
- Automotive AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green package (lead free)
- Ultra low Rds(on)
- 100% Avalanche tested
- Pb-free lead plating; RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MDES08N019RH#C51891826MagnaChip Semicon · D2PAK-7L | MagnaChip Semicon | D2PAK-7L | 781 | ₹135.48 · 781 in stock | View | |
 | IPB036N12N3GATMA1#C3279258Infineon · TO-263-7 | Infineon | TO-263-7 | 8 | ₹940.97 · 8 in stock | View |
| IPB180N08S4-02#C536574Infineon · TO-263-7 | Infineon | TO-263-7 | 756 | ₹564.96 · 756 in stock | View | |
 | IPB015N08N5ATMA1-VB#C22395950VBsemi Elec · TO-263-7 | VBsemi Elec | TO-263-7 | 5 | ₹362.98 · 5 in stock | View |
 | IPB180N10S403ATMA1-VB#C46753315VBsemi Elec · TO-263-7 | VBsemi Elec | TO-263-7 | 10 | ₹526.38 · 10 in stock | View |
