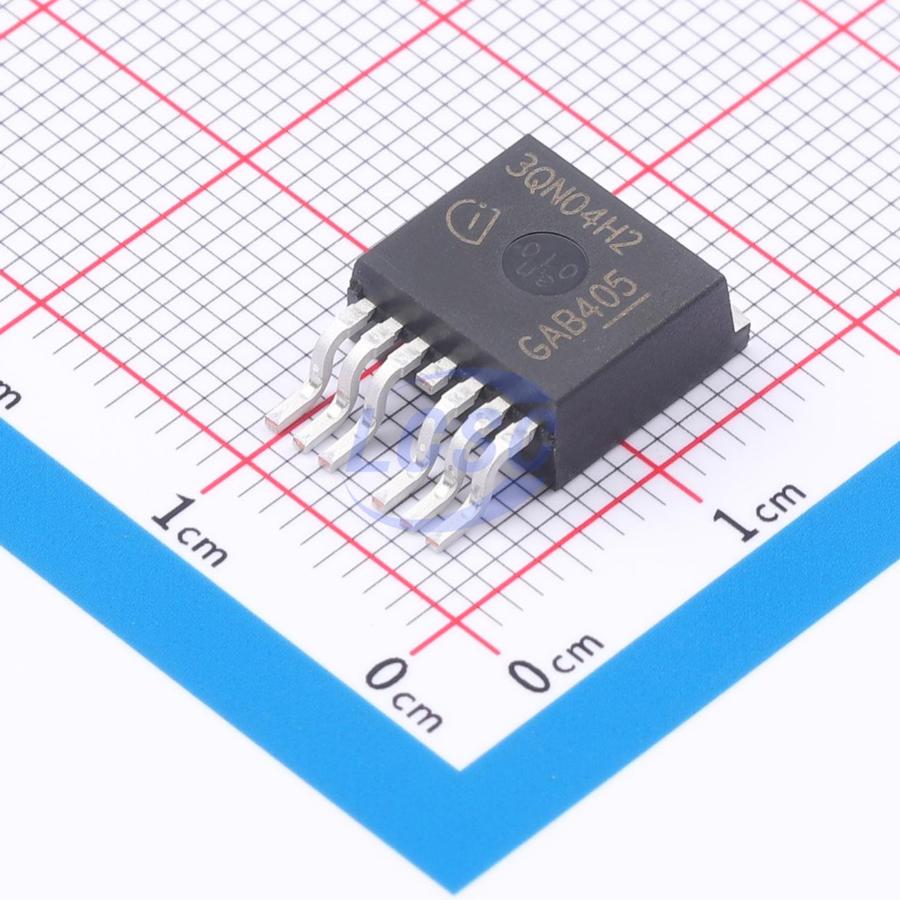

IPB160N04S3-H2
214W 40V 160A 2.1mΩ@10V 1 N-channel N-Channel TO-263-7 Single FETs, MOSFETs RoHS
TO-263-7ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB160N04S3-H2
- Store part #
- C536561
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C536561
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹586.68 | ₹586.68 |
| 10+ | ₹499.18 | ₹4,991.80 |
| 30+ | ₹447.15 | ₹13,414.50 |
| 100+ | ₹394.47 | ₹39,447.00 |
| 500+ | ₹370.31 | ₹1,85,155.00 |
| 1,000+ | ₹359.19 | ₹3,59,190.00 |
1 × ₹586.68
₹586.68
excl. GST
₹692.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB160N04S3-H2
₹586.68 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2nF
- Ciss-Input Capacitance
- 9.6nF
- Pd - Power Dissipation
- 214W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 160A
- Reverse Transfer Capacitance (Crss)
- 465pF
- RDS(on)
- 2.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 145nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.685 g
Overview
Key features
- N-Channel - Enhancement Mode
- Automotive Grade AEC Q101 Qualified
- MSL 1, 260°C Peak Reflow Temperature
- Operating Temperature up to 175°C
- Green Package (RoHS Compliant)
- Ultra-Low On-Resistance Rds(on)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB014N06NATMA1#C3279255Infineon · TO-263-7 | Infineon | TO-263-7 | 2 | ₹1,373.88 · 2 in stock | View |
 | IRFS7734TRL7PP#C538037Infineon · TO-263-7 | Infineon | TO-263-7 | 20 | ₹385.22 · 20 in stock | View |
 | IPB039N10N3GATMA1#C3289285Infineon · TO-263-7 | Infineon | TO-263-7 | 16 | ₹217.51 · 16 in stock | View |
| IPB160N04S4-H1#C536562Infineon · TO-263-7 | Infineon | TO-263-7 | 3,010 | ₹148.26 · 3,010 in stock | View | |
| FDB0250N807L#C463236onsemi · TO-263-7 | onsemi | TO-263-7 | 15 | ₹1,135.31 · 15 in stock | View | |
