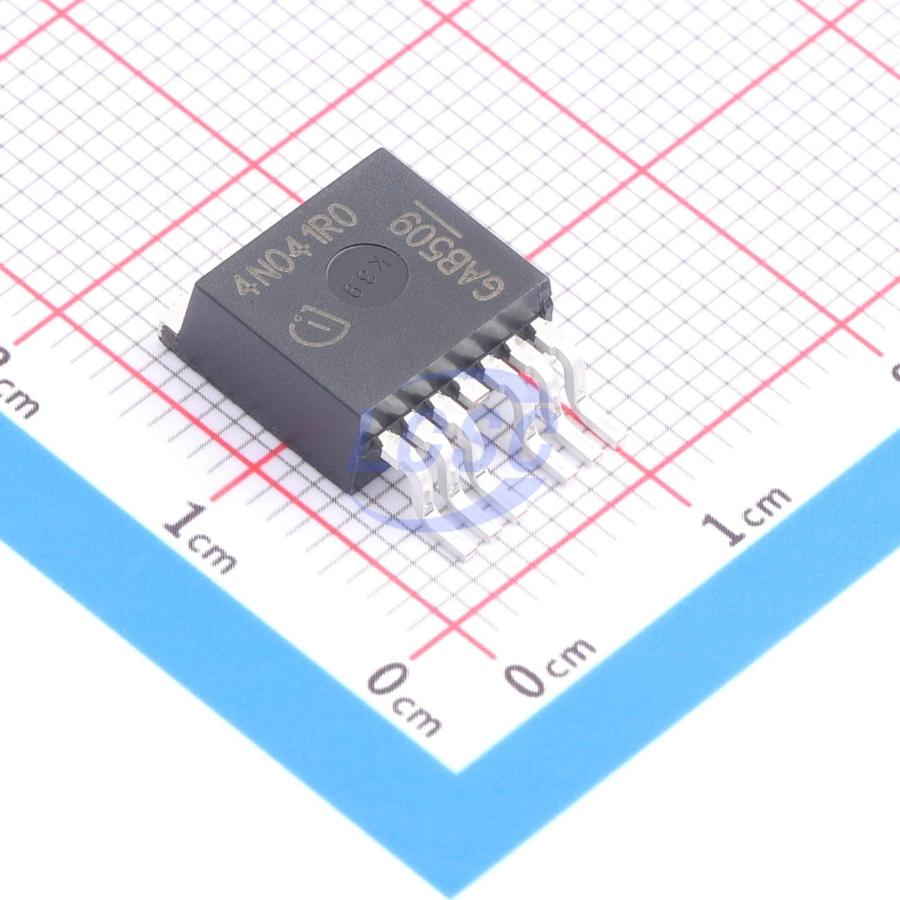

IPB240N04S4-1R0
231W 40V 240A 1mΩ@10V 1 N-channel N-Channel TO-263-7 Single FETs, MOSFETs RoHS
TO-263-7ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB240N04S4-1R0
- Store part #
- C536582
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C536582
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹971.96 | ₹971.96 |
| 10+ | ₹954.76 | ₹9,547.60 |
| 30+ | ₹943.58 | ₹28,307.40 |
| 100+ | ₹932.19 | ₹93,219.00 |
1 × ₹971.96
₹971.96
excl. GST
₹1,146.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB240N04S4-1R0
₹971.96 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.969nF
- Ciss-Input Capacitance
- 1.36nF
- Pd - Power Dissipation
- 231W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 240A
- Reverse Transfer Capacitance (Crss)
- 104pF
- RDS(on)
- 1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 221nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.948 g
Overview
Key features
- N-Channel - Enhancement Mode
- AEC Qualified
- MSL1 rated up to 260°C peak reflow temperature
- Operating temperature up to 175°C
- Green Product (RoHS Compliant)
- Ultra-low on-resistance Rds(on)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDB0170N607L#C898536onsemi · TO-263-7 | onsemi | TO-263-7 | 188 | ₹485.22 · 188 in stock | View |
 | IRFS3004TRL7PP#C538000Infineon · D2PAK-7 | Infineon | D2PAK-7 | 241 | ₹241.42 · 241 in stock | View |
 | IRFS7434TRL7PP#C538029Infineon · D2PAK-7 | Infineon | D2PAK-7 | 139 | ₹138.03 · 139 in stock | View |
 | LWT1H02HB#C54221166Lewa Micro · TO-263-7L | Lewa Micro | TO-263-7L | 664 | ₹227.87 · 664 in stock | View |
 | IPB015N08N5ATMA1#C3289284Infineon · TO-263-7 | Infineon | TO-263-7 | 56 | ₹329.16 · 56 in stock | View |
