HXY MOSFETDatasheet (PDF)

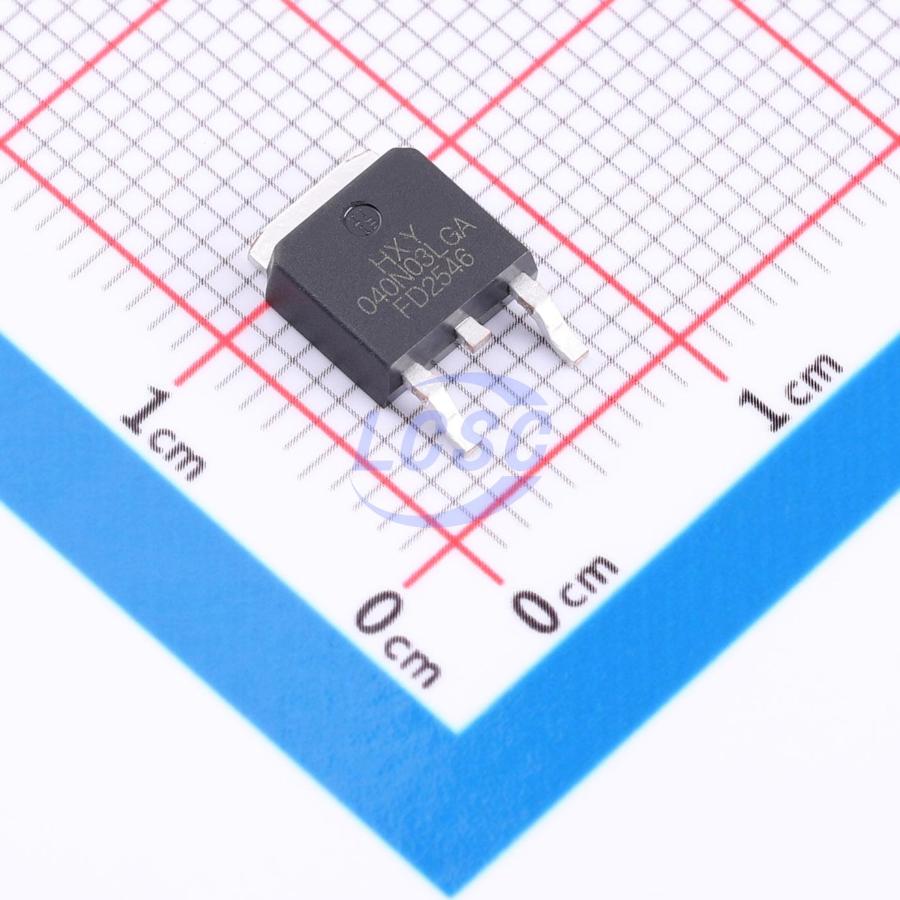

IPD040N03LGATMA1-HXY
62.5W 30V 120A 3mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPD040N03LGATMA1-HXY
- Store part #
- C53263031
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C53263031
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.03 | ₹195.15 |
| 50+ | ₹30.79 | ₹1,539.50 |
| 150+ | ₹27.24 | ₹4,086.00 |
| 500+ | ₹22.83 | ₹11,415.00 |
| 2,500+ | ₹20.88 | ₹52,200.00 |
| 5,000+ | ₹19.70 | ₹98,500.00 |
5 × ₹39.03
₹195.15
excl. GST
₹230.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD040N03LGATMA1-HXY
₹195.15 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 850pF
- Ciss-Input Capacitance
- 2.485nF
- Pd - Power Dissipation
- 62.5W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.372 g
