InfineonDatasheet (PDF)

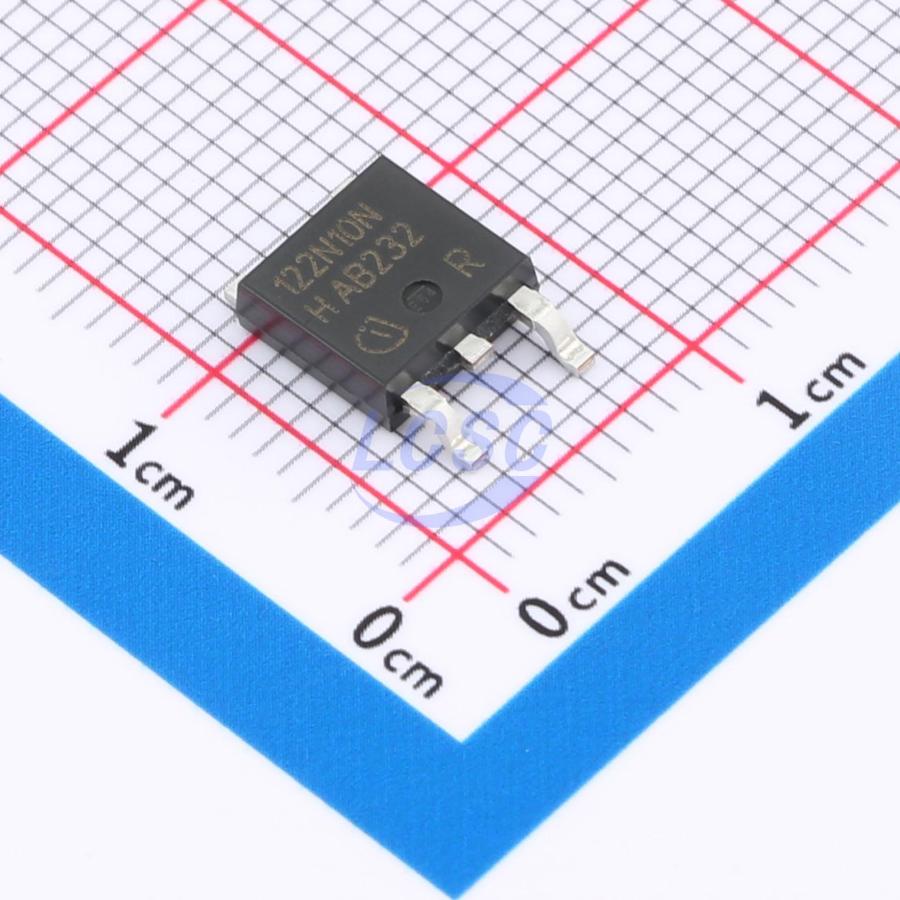

IPD122N10N3GATMA1
N-Channel 100V 59A 94W Surface Mount TO-252-3
TO-252-3ROHS3 CompliantActive
MOSFET N-CH 100V 59A TO-252-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPD122N10N3GATMA1
- Store part #
- C5381669
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C5381669
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹165.16 | ₹165.16 |
| 10+ | ₹137.09 | ₹1,370.90 |
| 30+ | ₹121.77 | ₹3,653.10 |
| 100+ | ₹104.49 | ₹10,449.00 |
| 500+ | ₹96.72 | ₹48,360.00 |
| 1,000+ | ₹93.27 | ₹93,270.00 |
1 × ₹165.16
₹165.16
excl. GST
₹194.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD122N10N3GATMA1
₹165.16 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 94W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 59A
- Reverse Transfer Capacitance (Crss)
- 14pF
- RDS(on)
- 12.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.403 g
Overview
Applications
- Battery protection
- Load switch
- Power management
Key features
- N-channel, normal level
- Excellent gate charge x RDS(on) product (FOM)
- Very low on-resistance RDS(on)
- 175 °C operating temperature
- Pb-free lead plating; RoHS compliant
- Qualified according to JEDEC for target application
- Ideal for high-frequency switching and synchronous rectification
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD60N10S4-12#C536797Infineon · TO-252-3 | Infineon | TO-252-3 | 174 | ₹197.67 · 174 in stock | View |
 | SP012N09GHTH#C42403245Siliup · TO-252 | Siliup | TO-252 | 1,765 | ₹31.49 · 1,765 in stock | View |
 | HB10N085SG#C52766429R+O · TO-252 | R+O | TO-252 | 12,176 | ₹74.80 · 12,176 in stock | View |
 | SP010N06GHTH#C55085244Siliup · TO-252 | Siliup | TO-252 | 925 | ₹39.15 · 925 in stock | View |
 | LWT1H08H4#C54221172Lewa Micro · TO-252 | Lewa Micro | TO-252 | 2,422 | ₹60.09 · 2,422 in stock | View |
