InfineonDatasheet (PDF)

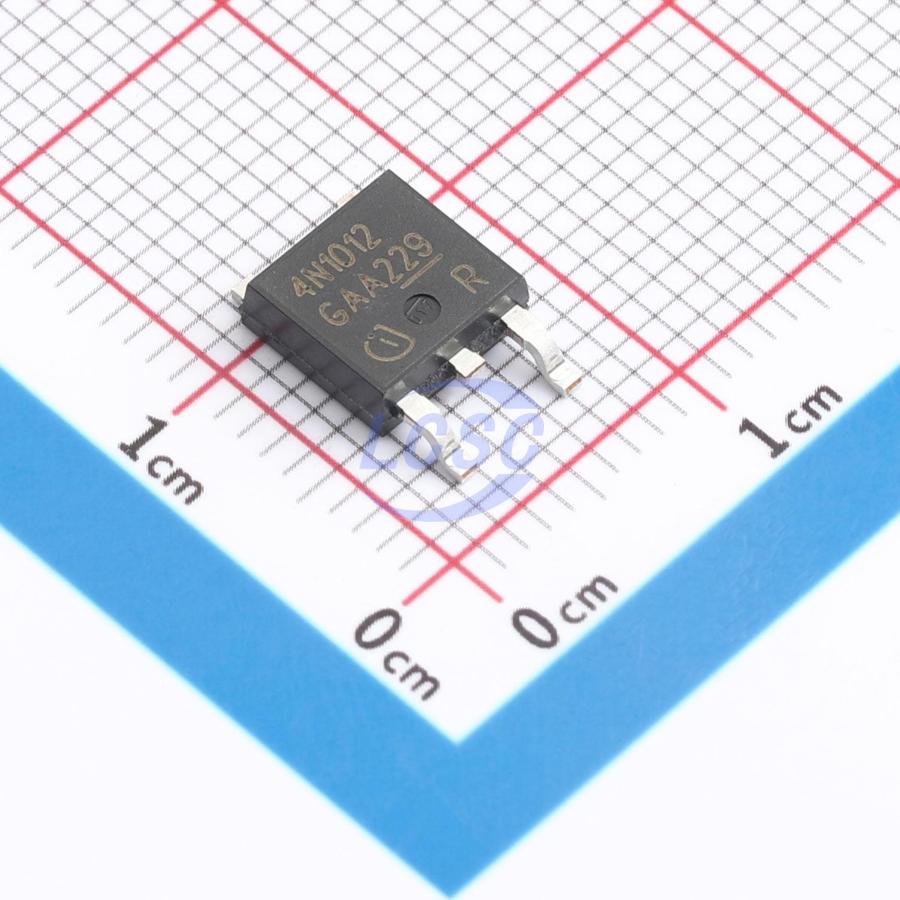

IPD60N10S4-12
94W 100V 60A 12.2mΩ@10V 1 N-channel N-Channel TO-252-3 Single FETs, MOSFETs RoHS
TO-252-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPD60N10S4-12
- Store part #
- C536797
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
174 in stock
#C536797
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹197.67 | ₹197.67 |
| 10+ | ₹162.62 | ₹1,626.20 |
| 30+ | ₹143.25 | ₹4,297.50 |
| 100+ | ₹121.48 | ₹12,148.00 |
| 500+ | ₹111.90 | ₹55,950.00 |
| 1,000+ | ₹107.33 | ₹1,07,330.00 |
1 × ₹197.67
₹197.67
excl. GST
₹233.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD60N10S4-12
₹197.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 600pF
- Ciss-Input Capacitance
- 2.47nF
- Pd - Power Dissipation
- 94W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 12.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.437 g
Overview
Key features
- N-Channel - Normally-Off - Enhancement Mode
- AEC Qualified
- MSL 1, 260°C Peak Reflow
- Operating Temperature up to 175°C
- Green Product (RoHS Compliant)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD122N10N3GATMA1#C5381669Infineon · TO-252-3 | Infineon | TO-252-3 | 12 | ₹165.16 · 12 in stock | View |
 | HSD60N10#C19725802HUAKE · TO-252 | HUAKE | TO-252 | 2,480 | ₹44.74 · 2,480 in stock | View |
 | LWT1H08H4#C54221172Lewa Micro · TO-252 | Lewa Micro | TO-252 | 2,422 | ₹60.09 · 2,422 in stock | View |
 | CMD079N10#C41410519Cmos · TO-252 | Cmos | TO-252 | 45 | ₹35.19 · 45 in stock | View |
 | SP012N09GHTH#C42403245Siliup · TO-252 | Siliup | TO-252 | 1,765 | ₹31.49 · 1,765 in stock | View |
