InfineonDatasheet (PDF)

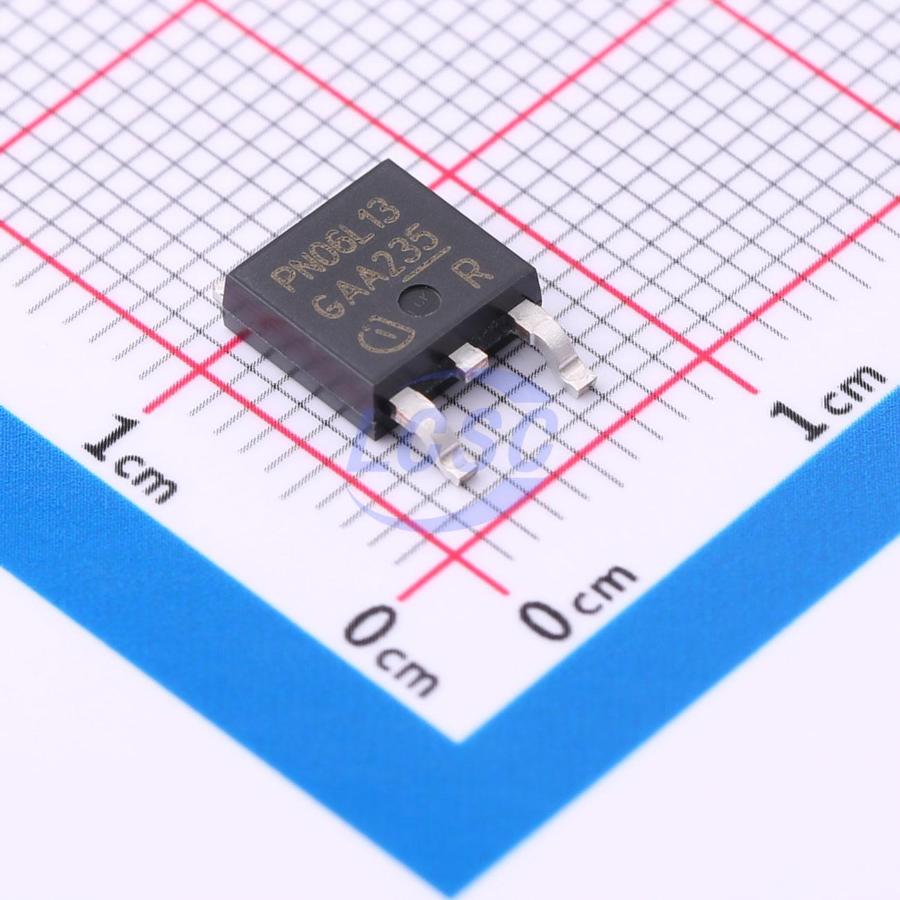

IPD50N06S2L-13
N-Channel 55V 136W Surface Mount TO-252-3
TO-252-3ROHS CompliantSold out at source
MOSFET N-CH 55V TO-252-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPD50N06S2L-13
- Store part #
- C536775
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C536775
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹491.00 | ₹491.00 |
| 10+ | ₹423.57 | ₹4,235.70 |
| 30+ | ₹383.33 | ₹11,499.90 |
| 100+ | ₹342.87 | ₹34,287.00 |
| 500+ | ₹324.07 | ₹1,62,035.00 |
| 1,000+ | ₹315.69 | ₹3,15,690.00 |
1 × ₹491.00
₹491.00
excl. GST
₹579.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD50N06S2L-13
₹491.00 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 508pF
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 136W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 172pF
- RDS(on)
- 12.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 54nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
Key features
- N-channel Logic Level - Enhancement mode
- Automotive AEC Q101 qualified
- MSL1 up to 260℃ peak reflow
- 175℃ operating temperature
- Green package (lead free)
- Ultra low Rds(on)
- 100% Avalanche tested
