InfineonDatasheet (PDF)

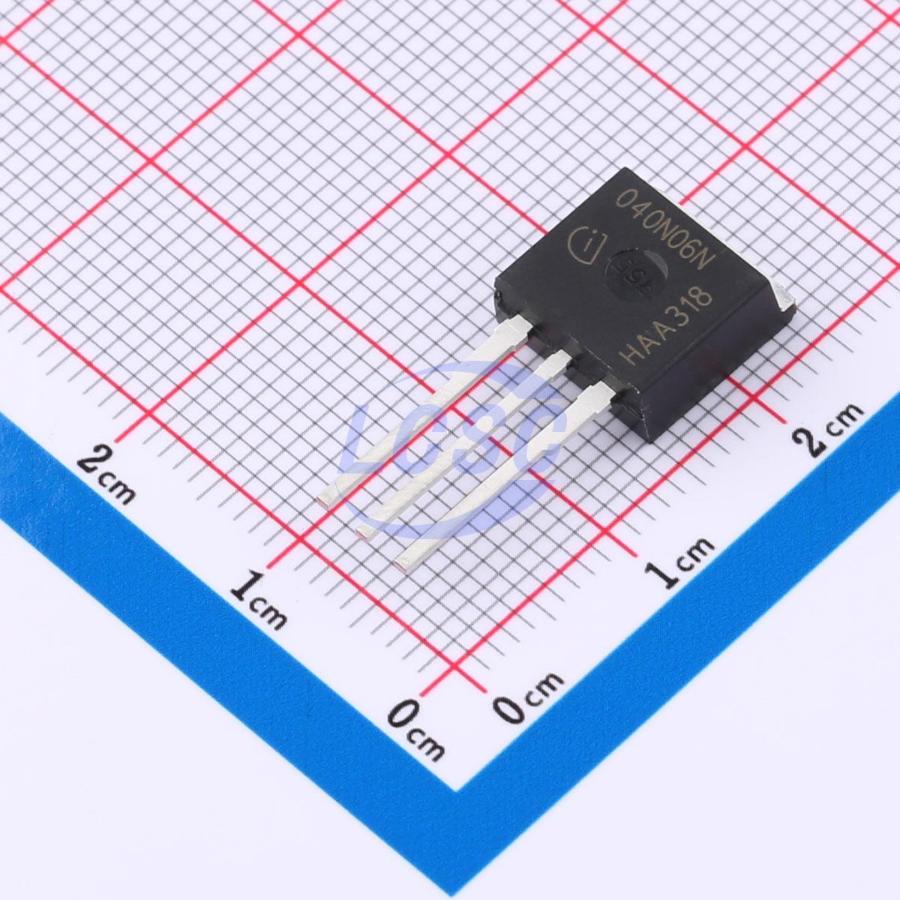

IPI040N06N3 G
N-Channel 60V 130A 188W Through Hole TO-262-3
TO-262-3ROHS CompliantActive
MOSFET N-CH 60V 130A TO-262-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPI040N06N3 G
- Store part #
- C536962
- Package / case
- TO-262-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C536962
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹199.81 | ₹199.81 |
| 10+ | ₹195.42 | ₹1,954.20 |
| 50+ | ₹192.69 | ₹9,634.50 |
| 100+ | ₹189.76 | ₹18,976.00 |
1 × ₹199.81
₹199.81
excl. GST
₹235.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPI040N06N3 G
₹199.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.7nF
- Current - Continuous Drain(Id)
- 130A
- Ciss-Input Capacitance
- 8nF
- Pd - Power Dissipation
- 188W
- Reverse Transfer Capacitance (Crss)
- 58pF
- RDS(on)
- 3.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 98nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.507 g
Overview
Key features
- Suitable for synchronous rectification, drivers, and DC/DC switching power supplies
- Excellent gate charge to on-resistance RDS(on) product (figure of merit)
- Ultra-low on-resistance RDS(on)
- N-channel, normal level
- Avalanche rated
- JEDEC compliant for target applications
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IPI045N10N3 G#C445495Infineon · TO-262-3 | Infineon | TO-262-3 | 2 | ₹710.77 · 2 in stock | View | |
 | IPI024N06N3 G#C536958Infineon · TO-262-3 | Infineon | TO-262-3 | 50 | ₹478.71 · 50 in stock | View |
 | IPI029N06N#C536959Infineon · TO-262-3 | Infineon | TO-262-3 | 25 | ₹306.51 · 25 in stock | View |
 | PSMN3R0-60ES,127-VB#C52191105VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹208.99 · 5 in stock | View |
 | BUK7E2R6-60E,127-VB#C52209355VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹208.99 · 5 in stock | View |
