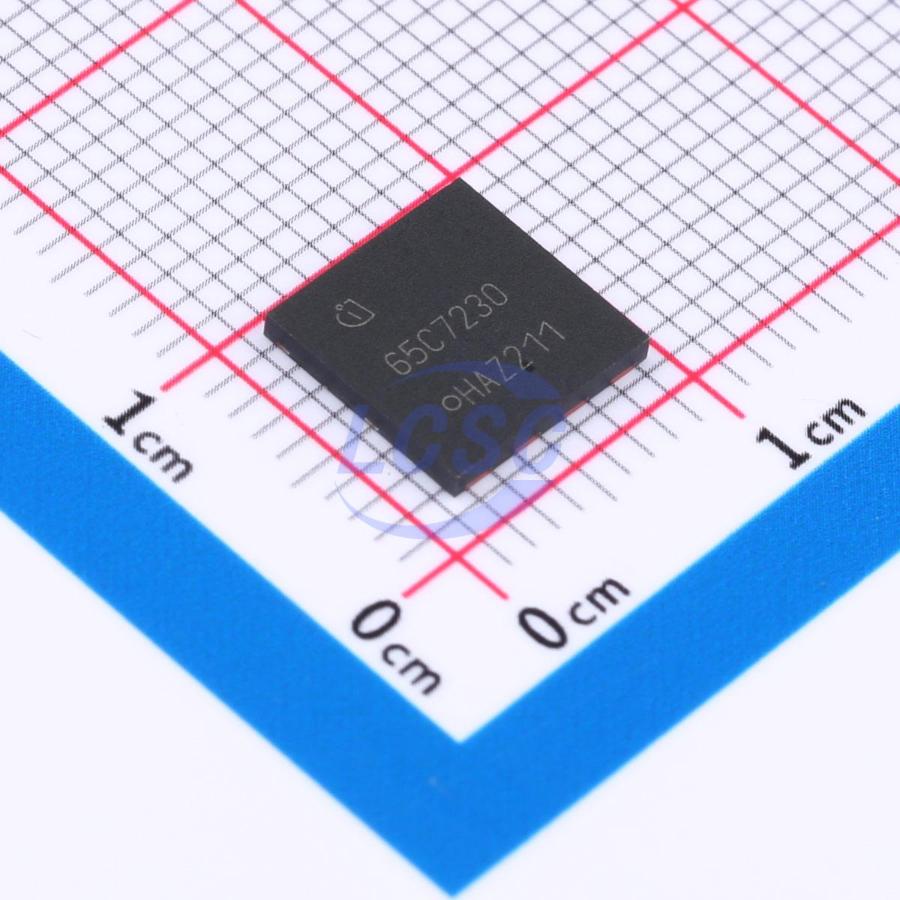

IPL65R230C7
N-Channel 650V 7A 67W Surface Mount VSON-4(8x8)
VSON-4(8x8)ROHS3 CompliantActive
MOSFET N-CH 650V 7A VSON-4(8x8)
- Manufacturer
- Infineon
- Manufacturer part #
- IPL65R230C7
- Store part #
- C537049
- Package / case
- VSON-4(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C537049
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹341.11 | ₹341.11 |
| 10+ | ₹291.71 | ₹2,917.10 |
| 30+ | ₹260.47 | ₹7,814.10 |
| 100+ | ₹228.81 | ₹22,881.00 |
| 500+ | ₹214.46 | ₹1,07,230.00 |
| 1,000+ | ₹208.12 | ₹2,08,120.00 |
1 × ₹341.11
₹341.11
excl. GST
₹402.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IPL65R230C7
₹341.11 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 14pF
- Ciss-Input Capacitance
- 996pF
- Pd - Power Dissipation
- 67W
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 7A
- Reverse Transfer Capacitance (Crss)
- 14pF
- RDS(on)
- 230mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS C7 series combines the experience of the leading SJ MOSFET supplier with high class innovation. The product portfolio provides all benefits of fast switching superjunction MOSFETs offering better efficiency, reduced gate charge, easy implementation and outstanding reliability.
Applications
- PFC stages and hard switching PWM stages for Computing, Server, Telecom, UPS and Solar.
Key features
- Increased MOSFET dv/dt ruggedness
- Better efficiency due to best in class FOM RDS(on)*Eoss and RDS(on)*Qg
- ThinPAK SMD Package with very low parasitic inductance to enable fast and reliable switching with minimum of size to increase power - density
- Easy to use/drive due to driver source pin for better control of the gate
- Pb - free plating, halogen free mold compound
- Qualified for industrial grade applications according to JEDEC (J - STD20 and JESD22)
