InfineonDatasheet (PDF)

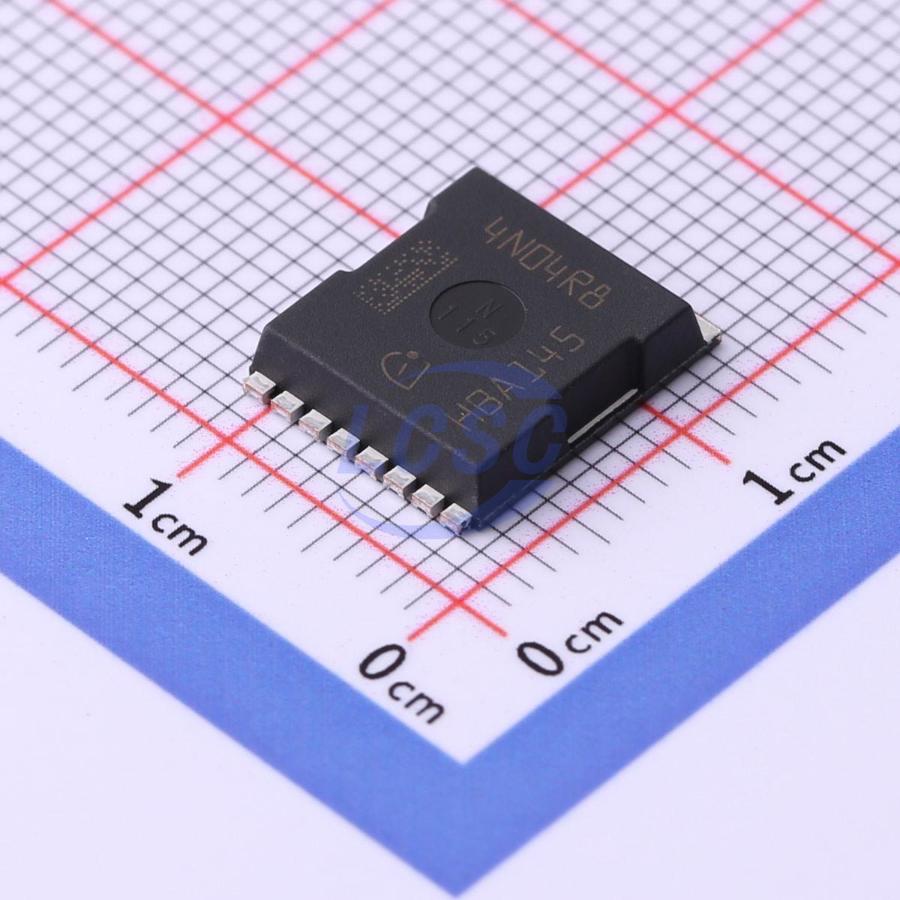

IPLU300N04S4-R8
40V 300A 429W HSOF-8
HSOF-8ROHS3 CompliantActive
MOSFET 40V 300A HSOF-8
- Manufacturer
- Infineon
- Manufacturer part #
- IPLU300N04S4-R8
- Store part #
- C537070
- Package / case
- HSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C537070
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹318.87 | ₹318.87 |
| 10+ | ₹270.08 | ₹2,700.80 |
| 30+ | ₹239.63 | ₹7,188.90 |
| 100+ | ₹208.33 | ₹20,833.00 |
| 500+ | ₹194.31 | ₹97,155.00 |
| 1,000+ | ₹188.04 | ₹1,88,040.00 |
1 × ₹318.87
₹318.87
excl. GST
₹376.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IPLU300N04S4-R8
₹318.87 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.79nF
- Ciss-Input Capacitance
- 22.945nF
- Pd - Power Dissipation
- 429W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 300A
- Reverse Transfer Capacitance (Crss)
- 300pF
- RDS(on)
- 0.77mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 287nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.86 g
Overview
Key features
- N-channel - Enhancement mode
- AEC qualified
- MSL1 up to 260°C peak reflow
- 17500 operating temperature
- Green product (RoHS compliant); 100% lead free
- Ultra low Rds(on)
- 100% Avalanche tested
