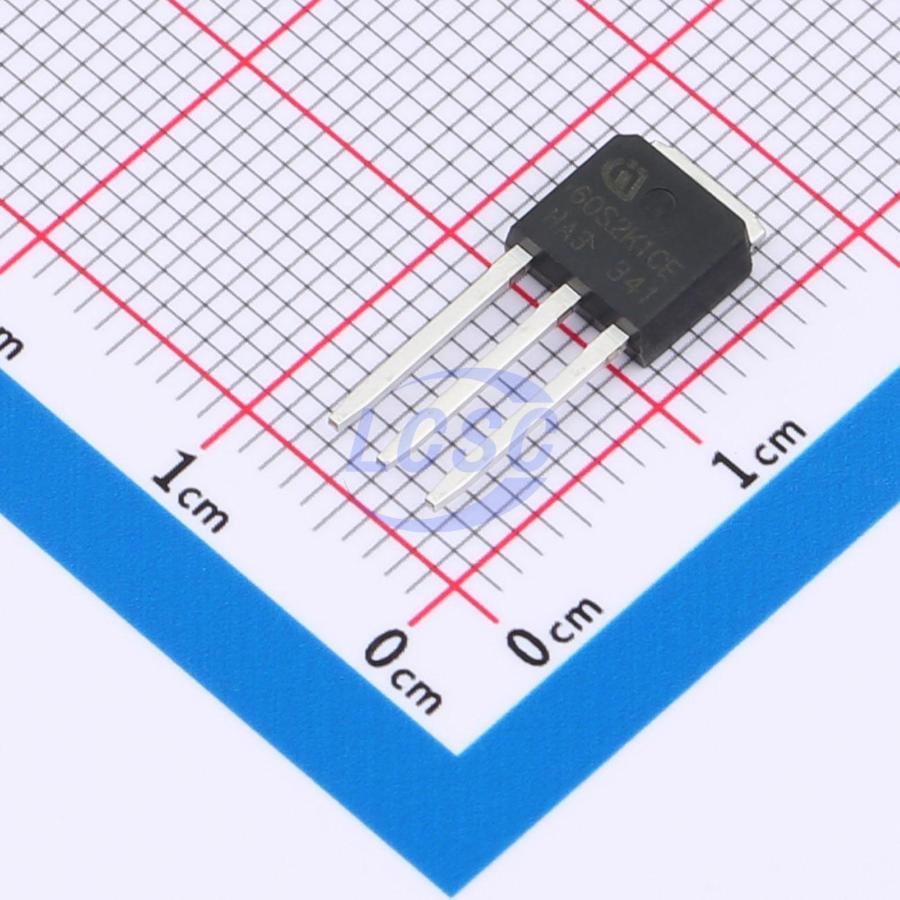

IPU60R2K1CEAKMA1
N-Channel 600V 3.7A 38W Through Hole TO-251-3
TO-251-3ROHS3 CompliantSold out at source
MOSFET N-CH 600V 3.7A TO-251-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPU60R2K1CEAKMA1
- Store part #
- C3278986
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C3278986
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹41.70 | ₹41.70 |
| 10+ | ₹40.68 | ₹406.80 |
| 30+ | ₹40.07 | ₹1,202.10 |
| 100+ | ₹39.45 | ₹3,945.00 |
1 × ₹41.70
₹41.70
excl. GST
₹49.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
IPU60R2K1CEAKMA1
₹41.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 12pF
- Ciss-Input Capacitance
- 140pF
- Pd - Power Dissipation
- 38W
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 3.7A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 2.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.64 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS CE is a price-performance optimized platform enabling to target cost sensitive applications in Consumer and Lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching Superjunction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market.
Applications
- PFC stages, hard switching PWM stages and resonant switching stages for e.g. PC Silverbox, Adapter, LCD & PDP TV and indoor lighting.
Key features
- Extremely low losses due to very low FOM Rdson*Qg and Eoss
- Very high commutation ruggedness
- Easy to use/drive
- Pb-free plating, Halogen free mold compound
- Qualified for standard grade applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPU60R2K1CE#C476112Infineon · TO-251 | Infineon | TO-251 | 949 | ₹54.39 · 949 in stock | View |
 | IPSA70R750P7SAKMA1#C3278972Infineon · TO-251-3 | Infineon | TO-251-3 | 10 | ₹220.00 · 10 in stock | View |
 | YFW4N65AMJ#C5444204YFW · TO-251S | YFW | TO-251S | 120 | ₹33.14 · 120 in stock | View |
 | CMU80R1K2#C39840893Cmos · TO-251 | Cmos | TO-251 | 24 | ₹60.50 · 24 in stock | View |
 | AOI4N60-VB#C7568862VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 20 | ₹72.90 · 20 in stock | View |
