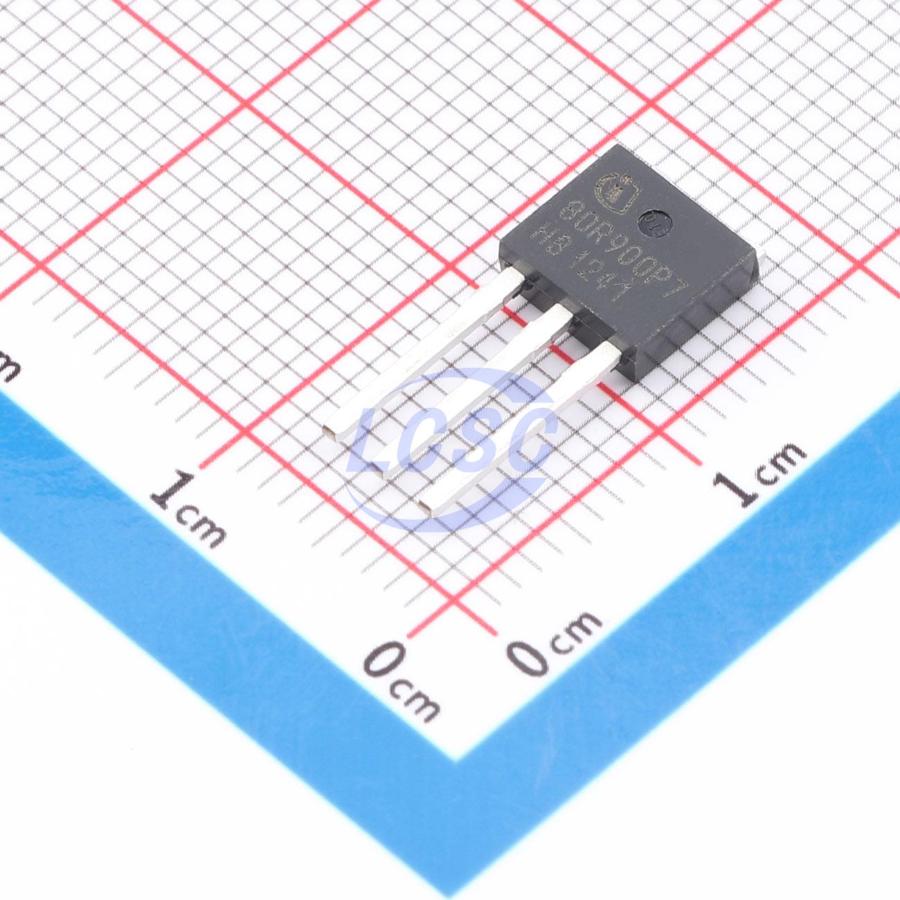

IPU80R900P7
45W 800V 6A 900mΩ@10V 1 N-channel N-Channel TO-251-3 Single FETs, MOSFETs RoHS
TO-251-3ROHS3 CompliantActive
MOSFET N-CH 800V 6A TO-251-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPU80R900P7
- Store part #
- C531230
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C531230
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹199.47 | ₹199.47 |
| 10+ | ₹196.47 | ₹1,964.70 |
| 30+ | ₹194.52 | ₹5,835.60 |
| 100+ | ₹192.59 | ₹19,259.00 |
1 × ₹199.47
₹199.47
excl. GST
₹235.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per tube
IPU80R900P7
₹199.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 6pF
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 45W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 900mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 1,500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.677 g
Overview
The latest 800V CoolMOS™ P7 series sets a new benchmark in 800V superjunction technology, combining best-in-class performance with advanced ease of use — the result of Infineon's pioneering superjunction technology innovation experience spanning over 18 years.
Applications
- Recommended for hard-switching and soft-switching flyback topologies in LED lighting, low-power chargers and adapters, audio, auxiliary power supplies, and industrial power supplies.
- Also suitable for PFC stages in consumer applications and solar energy.
Key features
- Best-in-class figure of merit R<sub>DS(on)</sub> × E<sub>oss</sub>; reduced Q<sub>g</sub>, C<sub>iss</sub> and C<sub>oss</sub>
- Best-in-class R<sub>DS(on)</sub> in DPAK package
- Best-in-class 3V V<sub>(GS)th</sub> with minimum ±0.5V V<sub>(GS)th</sub> variation
- Integrated Zener diode ESD protection
- Fully compliant with JEDEC industrial application standards
- Comprehensively optimized product portfolio
