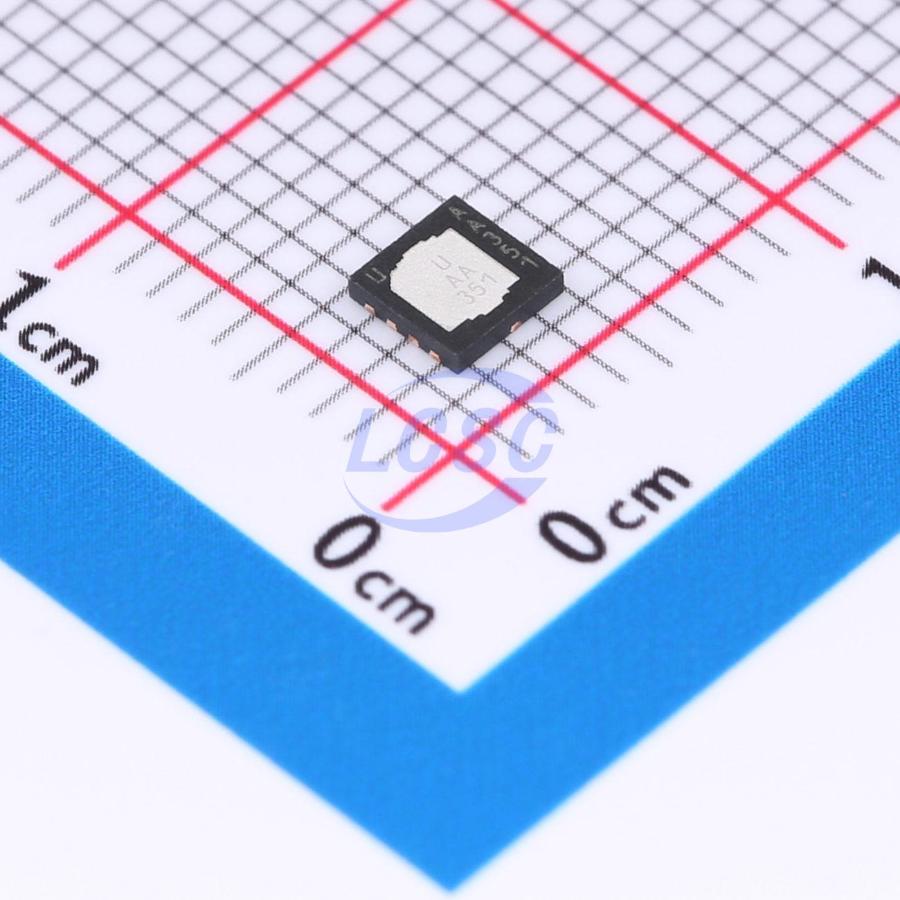

Infineon

IQE004NE1LM7SCATMA1

15V 379A 89W 0.57mΩ@4.5V 1 N-channel N-Channel WHSON-8(3.3x3.3) Single FETs, MOSFETs RoHS

WHSON-8(3.3x3.3)ROHS3 CompliantActive

MOSFET N-CH 15V 379A WHSON-8(3.3x3.3)

Manufacturer: Infineon
Manufacturer part #: IQE004NE1LM7SCATMA1
Store part #: C22443523
Package / case: WHSON-8(3.3x3.3)
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

104 in stock

#C22443523

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹359.92	₹359.92
10+	₹303.11	₹3,031.10
30+	₹267.55	₹8,026.50
100+	₹231.13	₹23,113.00
500+	₹214.66	₹1,07,330.00
1,000+	₹207.50	₹2,07,500.00

Quantity (min 1)

1 × ₹359.92

₹359.92

excl. GST

₹424.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 6,000 per reel

IQE004NE1LM7SCATMA1

₹359.92 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Drain to Source Voltage: 15V
Operating Temperature: -55℃~+150℃
Current - Continuous Drain(Id): 379A
Output Capacitance(Coss): 3.38nF
Ciss-Input Capacitance: 6.24nF
Pd - Power Dissipation: 89W
Reverse Transfer Capacitance (Crss): 455pF
RDS(on): 0.57mΩ@4.5V
Number: 1 N-channel
Gate Charge(Qg): 55nC@7V
Gate Threshold Voltage (Vgs(th)): 2V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.164 g

Overview

The WSD3072DN33 utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. The device is suitable for battery protection or other switching applications. The WSD3072DN33 complies with RoHS and green product requirements, is 100% EAS tested, and carries full functional reliability qualification.

Applications

Battery Protection - Load Switch - Uninterruptible Power Supply

Key features

N-channel, logic level
Ultra-low on-resistance RDS(on)
Excellent thermal resistance performance
100% avalanche tested
Lead-free lead plating; RoHS compliant
Halogen-free per IEC61249-2-21
Optimized for high-performance SMPS applications such as synchronous rectification
