InfineonDatasheet (PDF)

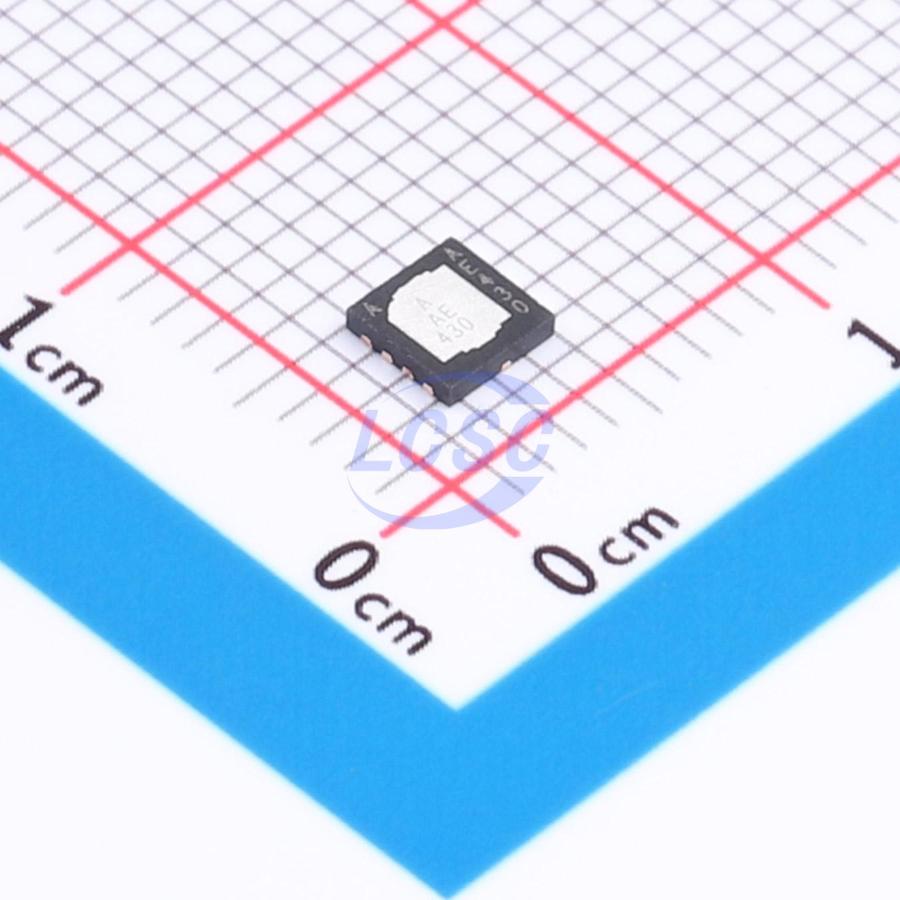

IQE006NE2LM5SCATMA1
N-Channel 25V 310A 89W Surface Mount WHSON-8(3.3x3.3)
WHSON-8(3.3x3.3)ROHS3 CompliantActive
MOSFET N-CH 25V 310A WHSON-8(3.3x3.3)
- Manufacturer
- Infineon
- Manufacturer part #
- IQE006NE2LM5SCATMA1
- Store part #
- C20191644
- Package / case
- WHSON-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C20191644
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹468.32 | ₹468.32 |
| 10+ | ₹398.42 | ₹3,984.20 |
| 30+ | ₹356.84 | ₹10,705.20 |
| 100+ | ₹314.82 | ₹31,482.00 |
| 500+ | ₹295.45 | ₹1,47,725.00 |
| 1,000+ | ₹286.73 | ₹2,86,730.00 |
1 × ₹468.32
₹468.32
excl. GST
₹552.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
IQE006NE2LM5SCATMA1
₹468.32 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.261nF
- Ciss-Input Capacitance
- 5.453nF
- Pd - Power Dissipation
- 89W
- Configuration
- Standalone
- Drain to Source Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 310A
- Reverse Transfer Capacitance (Crss)
- 195pF
- RDS(on)
- 0.58mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC@4.5V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
Key features
- Ultra-low on-resistance R DS(on)
- 100% avalanche tested
- Excellent thermal resistance performance
- N-channel, logic level
- Lead-free lead finish; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRL7472L1TRPBF#C538140Infineon · WHSON-8(3.3x3.3) | Infineon | WHSON-8(3.3x3.3) | 122 | ₹463.57 · 122 in stock | View |
 | SIS476DN-T1-GE3#C269267VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 8 | ₹455.46 · 8 in stock | View |
