InfineonDatasheet (PDF)

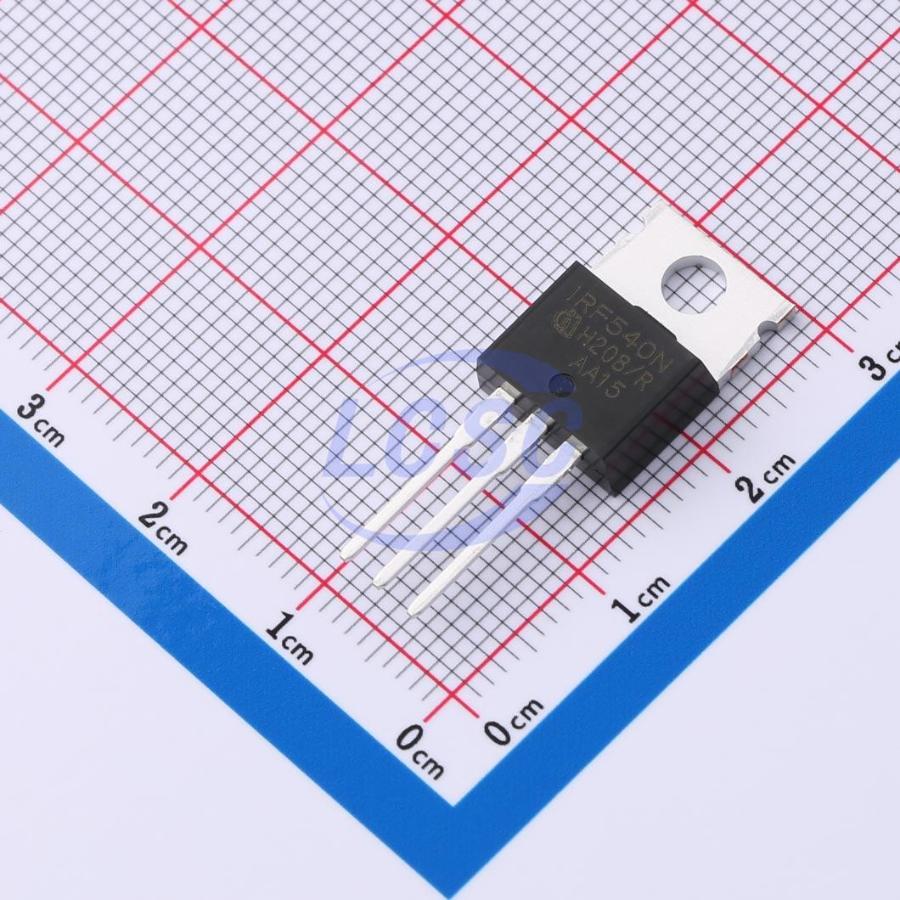

IRF540NPBF
N-Channel 100V 33A 130W Through Hole TO-220AB
PopularTO-220ABROHS3 CompliantActive
MOSFET N-CH 100V 33A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRF540NPBF
- Store part #
- C2566
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,00,000 in stock
#C2566
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.57 | ₹242.85 |
| 50+ | ₹37.71 | ₹1,885.50 |
| 150+ | ₹32.61 | ₹4,891.50 |
| 500+ | ₹28.07 | ₹14,035.00 |
| 2,000+ | ₹26.82 | ₹53,640.00 |
| 5,000+ | ₹26.08 | ₹1,30,400.00 |
5 × ₹48.57
₹242.85
excl. GST
₹286.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF540NPBF
₹242.85 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 250pF
- Ciss-Input Capacitance
- 1.96nF
- Pd - Power Dissipation
- 130W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 33A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 44mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 71nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.76 g
Overview
Advanced HEXFET Power MOSFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- Dynamic dv/dt Rating
- 175°C Operating Temperature
- Fast Switching
- Fully Avalanche Rated
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMP540P#C19188067Cmos · TO-220 | Cmos | TO-220 | 200 | ₹54.43 · 200 in stock | View |
 | SP540TQ#C49257257Siliup · TO-220-3L | Siliup | TO-220-3L | 105 | ₹42.07 · 105 in stock | View |
 | IRF540N-HXY#C19267787HXY MOSFET · TO-220 | HXY MOSFET | TO-220 | 47 | ₹58.68 · 47 in stock | View |
 | IRF540N-MNS#C42411367Minos · TO-220 | Minos | TO-220 | 1,795 | ₹37.40 · 1,795 in stock | View |
| MPG30N10P#C51933934Minos · TO-220 | Minos | TO-220 | 750 | ₹39.16 · 750 in stock | View | |
