VISHAYDatasheet (PDF)

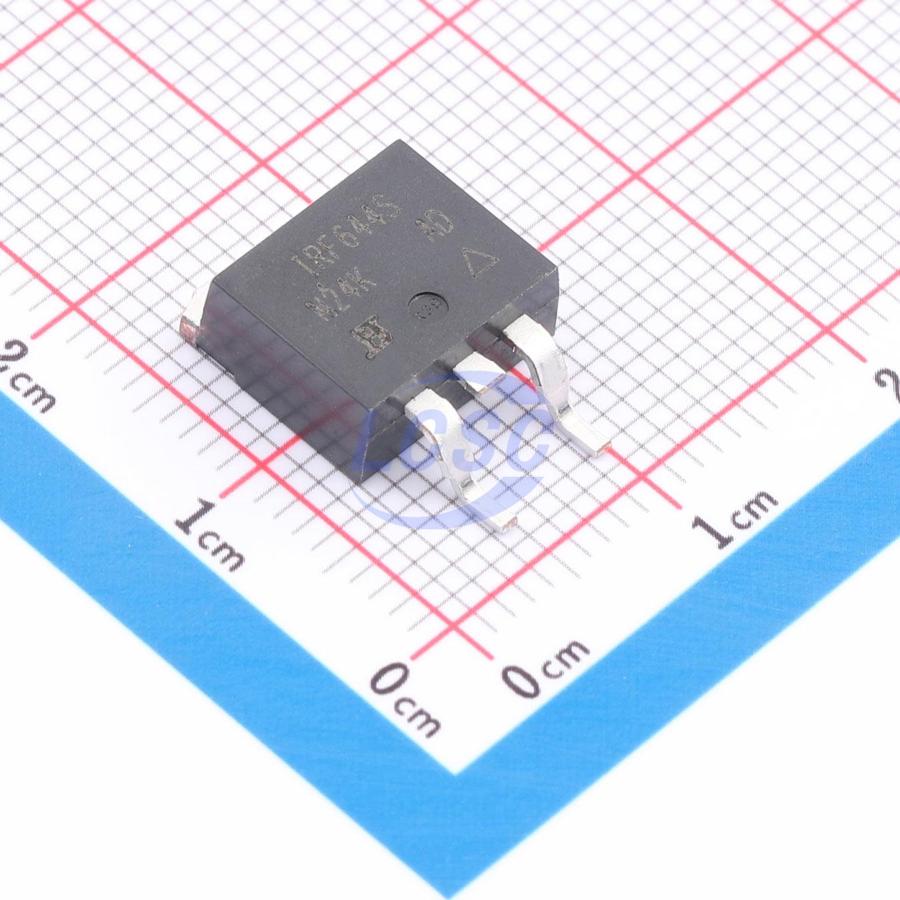

IRF644SPBF
250V 14A 280mΩ@10V 1 N-channel N-Channel D2PAK(TO-263) Single FETs, MOSFETs RoHS
D2PAK(TO-263)ROHS3 CompliantActive
MOSFET N-CH 250V 14A D2PAK(TO-263)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF644SPBF
- Store part #
- C5741243
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C5741243
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹558.85 | ₹558.85 |
| 10+ | ₹550.90 | ₹5,509.00 |
| 50+ | ₹545.74 | ₹27,287.00 |
| 100+ | ₹540.37 | ₹54,037.00 |
1 × ₹558.85
₹558.85
excl. GST
₹659.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF644SPBF
₹558.85 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 14A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 3.1W;125W
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 280mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.553 g
Overview
The third-generation power MOSFETs offer designers the best combination of fast switching, rugged device design, low on-resistance, and cost-effectiveness. The D2PAK (TO-263) is a surface-mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance of any available surface-mount package. Due to its low internal connection resistance, the D2PAK (TO-263) is suitable for high-current applications and can dissipate up to 2.0 W of power in typical surface-mount applications.
Applications
- Adapter
Key features
- Surface mount
- Available in tape and reel packaging
- Dynamic dv/dt rated
- Repetitive avalanche rated
- Fast switching
- Easy to parallel
- Simple drive requirement
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF644SPBF-VB#C18212540VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 6 | ₹194.40 · 6 in stock | View |
 | IRF644NSPBF-VB#C19188244VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 8 | ₹169.81 · 8 in stock | View |
 | SIHB17N80AE-GE3#C3288194VISHAY · D2PAK(TO-263) | VISHAY | D2PAK(TO-263) | 10 | ₹389.69 · 10 in stock | View |
 | SIHB21N80AE-GE3#C3288119VISHAY · D2PAK(TO-263) | VISHAY | D2PAK(TO-263) | 5 | ₹306.83 · 5 in stock | View |
 | CMB20N50B#C54863609Cmos · TO-263 | Cmos | TO-263 | 185 | ₹94.83 · 185 in stock | View |
