InfineonDatasheet (PDF)

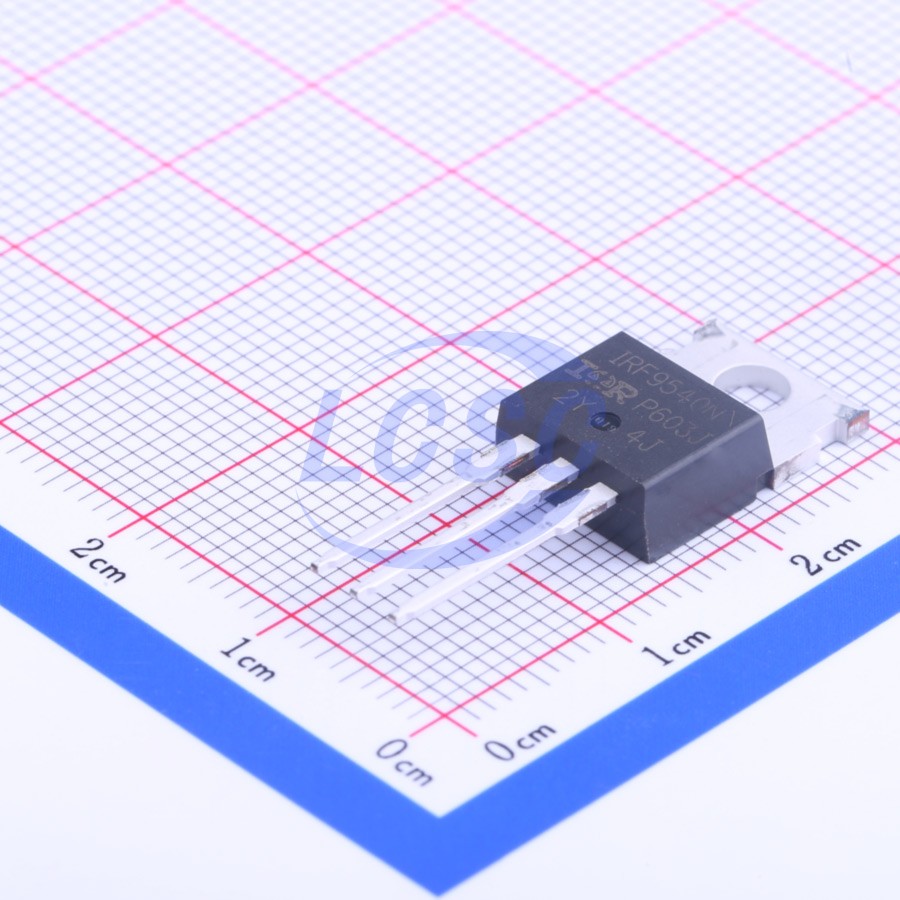

IRF9540NPBF
P-Channel 100V 23A 140W Through Hole TO-220
PopularTO-220ROHS3 CompliantActive
MOSFET P-CH 100V 23A TO-220
- Manufacturer
- Infineon
- Manufacturer part #
- IRF9540NPBF
- Store part #
- C2575
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
79,995 in stock
#C2575
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.54 | ₹237.70 |
| 50+ | ₹35.13 | ₹1,756.50 |
| 150+ | ₹30.02 | ₹4,503.00 |
| 500+ | ₹25.47 | ₹12,735.00 |
| 2,500+ | ₹24.21 | ₹60,525.00 |
| 5,000+ | ₹23.46 | ₹1,17,300.00 |
5 × ₹47.54
₹237.70
excl. GST
₹280.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF9540NPBF
₹237.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 400pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 140W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 23A
- Reverse Transfer Capacitance (Crss)
- 240pF
- RDS(on)
- 117mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 97nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.98 g
Overview
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Key features
- Lead-Free
- Advanced Process Technology
- Dynamic dv/dt Rating
- 175°C Operating Temperature
- Fast Switching
- P-Channel
- Fully Avalanche Rated
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9540#C19272229Minos · TO-220 | Minos | TO-220 | 135 | ₹68.65 · 135 in stock | View |
 | HSP0115#C508808HUASHUO · TO-220 | HUASHUO | TO-220 | 25 | ₹73.45 · 25 in stock | View |
 | MPG30P10P#C5452753Minos · TO-220 | Minos | TO-220 | 55 | ₹54.34 · 55 in stock | View |
 | IRF5210PBF-VB#C55251747VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹145.44 · 5 in stock | View |
 | CMP5940B#C5203734Cmos · TO-220 | Cmos | TO-220 | 103 | ₹58.12 · 103 in stock | View |
