InfineonDatasheet (PDF)

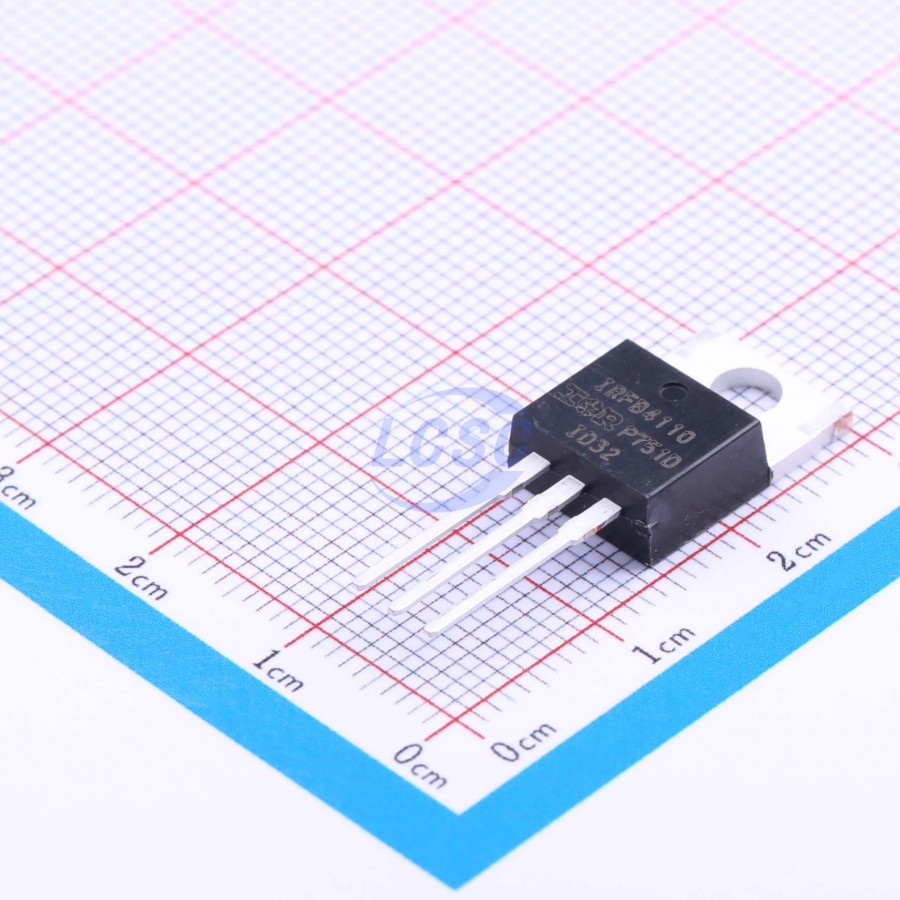

IRFB4110PBF
N-Channel 100V 180A 370W Through Hole TO-220
PopularTO-220ROHS3 CompliantActive
MOSFET N-CH 100V 180A TO-220
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB4110PBF
- Store part #
- C2650
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,000 in stock
#C2650
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.94 | ₹135.94 |
| 10+ | ₹120.74 | ₹1,207.40 |
| 50+ | ₹93.38 | ₹4,669.00 |
| 100+ | ₹82.74 | ₹8,274.00 |
| 600+ | ₹78.18 | ₹46,908.00 |
| 900+ | ₹76.01 | ₹68,409.00 |
1 × ₹135.94
₹135.94
excl. GST
₹160.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB4110PBF
₹135.94 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 670pF
- Ciss-Input Capacitance
- 9.62nF
- Pd - Power Dissipation
- 370W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 180A
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 4.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 210nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.84 g
Overview
Applications
- High Efficiency Synchronous Rectification in SMPS
- Uninterruptible Power Supply
- High Speed Power Switching
- Hard Switched and High Frequency Circuits
Key features
- Improved Gate, Avalanche and Dynamic dv/dt
- Ruggedness
- Fully Characterized Capacitance and Avalanche
- SOA
- Enhanced body diode dV/dt and dl/dt Capability
- LeadFree
- RoHS Compliant, Halogen-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP010N03BGHTQ#C22385394Siliup · TO-220-3L | Siliup | TO-220-3L | 401 | ₹89.05 · 401 in stock | View |
 | CMP160N10#C41433031Cmos · TO-220 | Cmos | TO-220 | 3 | ₹131.44 · 3 in stock | View |
 | HSP0084A#C51025869HUASHUO · TO-220 | HUASHUO | TO-220 | 188 | ₹96.49 · 188 in stock | View |
 | E100N4P5AH1#C52204718Existar · TO-220 | Existar | TO-220 | 81 | ₹104.29 · 81 in stock | View |
 | MPG180N10P#C5240685Minos · TO-220 | Minos | TO-220 | 46 | ₹135.59 · 46 in stock | View |
