VBsemi ElecDatasheet (PDF)

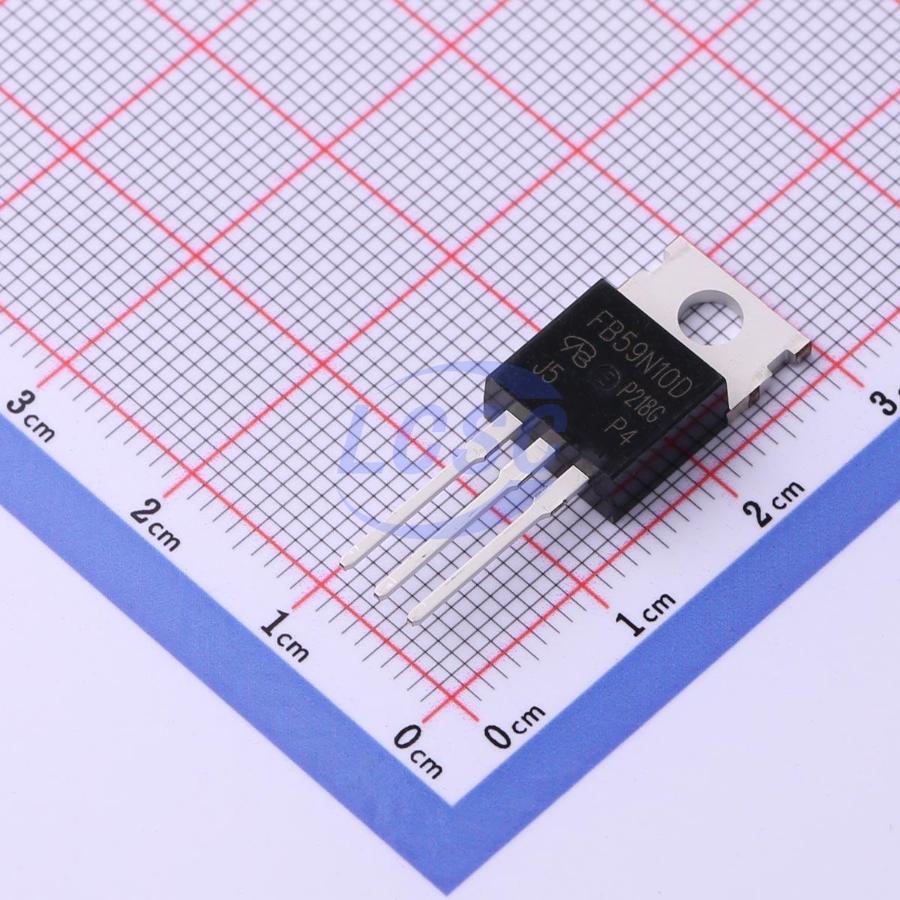

IRFB59N10DPBF-VB
N-Channel 100V 120A 355W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 120A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFB59N10DPBF-VB
- Store part #
- C3040327
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C3040327
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.96 | ₹124.96 |
| 10+ | ₹100.52 | ₹1,005.20 |
| 50+ | ₹88.42 | ₹4,421.00 |
| 100+ | ₹76.30 | ₹7,630.00 |
| 500+ | ₹69.07 | ₹34,535.00 |
| 1,000+ | ₹65.46 | ₹65,460.00 |
1 × ₹124.96
₹124.96
excl. GST
₹147.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB59N10DPBF-VB
₹124.96 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 210pF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 355W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.78 g
Overview
Applications
- Isolated DC/DC Converters
- N-Channel MOSFET
Key features
- TrenchFET Power MOSFET
- 175 °C Junction Temperature
- Low Thermal Resistance Package
- 100 % Rg Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUP70030E-VB#C18457634VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹224.21 · 10 in stock | View |
 | CSD19531KCS-VB#C19190191VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹224.21 · 15 in stock | View |
 | AP95T10GP-HF-VB#C20755466VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹211.94 · 10 in stock | View |
 | STP110N10F7-VB#C2680810VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹218.45 · 3 in stock | View |
 | SUP70090E-GE3-VB#C47993721VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹244.77 · 6 in stock | View |
