VBsemi ElecDatasheet (PDF)

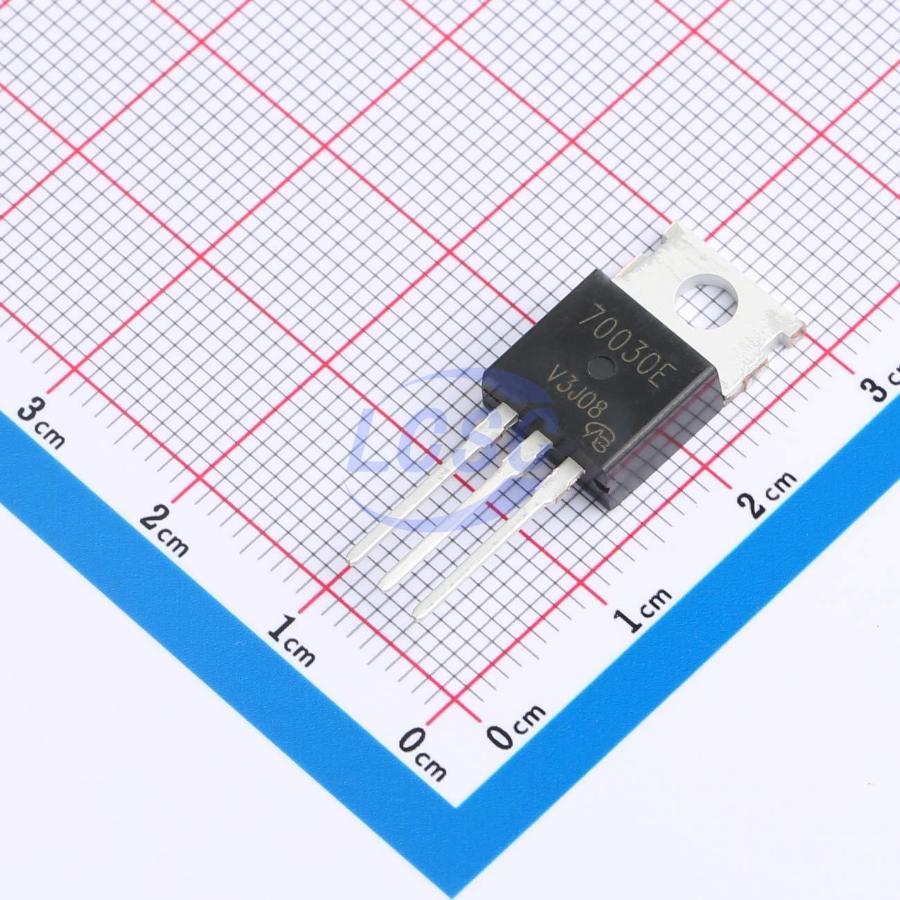

SUP70030E-VB
N-Channel 100V 120A 370W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 120A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SUP70030E-VB
- Store part #
- C18457634
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C18457634
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹224.21 | ₹224.21 |
| 10+ | ₹191.27 | ₹1,912.70 |
| 50+ | ₹170.65 | ₹8,532.50 |
| 100+ | ₹149.41 | ₹14,941.00 |
| 500+ | ₹139.84 | ₹69,920.00 |
| 1,000+ | ₹135.81 | ₹1,35,810.00 |
1 × ₹224.21
₹224.21
excl. GST
₹264.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SUP70030E-VB
₹224.21 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 2.025nF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 10nF
- Pd - Power Dissipation
- 370W
- Reverse Transfer Capacitance (Crss)
- 165pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 76nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.9 g
Overview
Key features
- ThunderFET power MOSFET
- Maximum 175 °C junction temperature
- 100 % Rg and UIS tested
- Material categorization: for definitions of compliance please see
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP95T10GP-HF-VB#C20755466VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹211.94 · 10 in stock | View |
 | STP110N10F7-VB#C2680810VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹218.45 · 3 in stock | View |
 | SUP70090E-GE3-VB#C47993721VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹244.77 · 6 in stock | View |
 | SUP70042E-GE3-VB#C47993722VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹244.77 · 5 in stock | View |
 | STP150N10F7AG-VB#C47993726VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹219.26 · 20 in stock | View |
