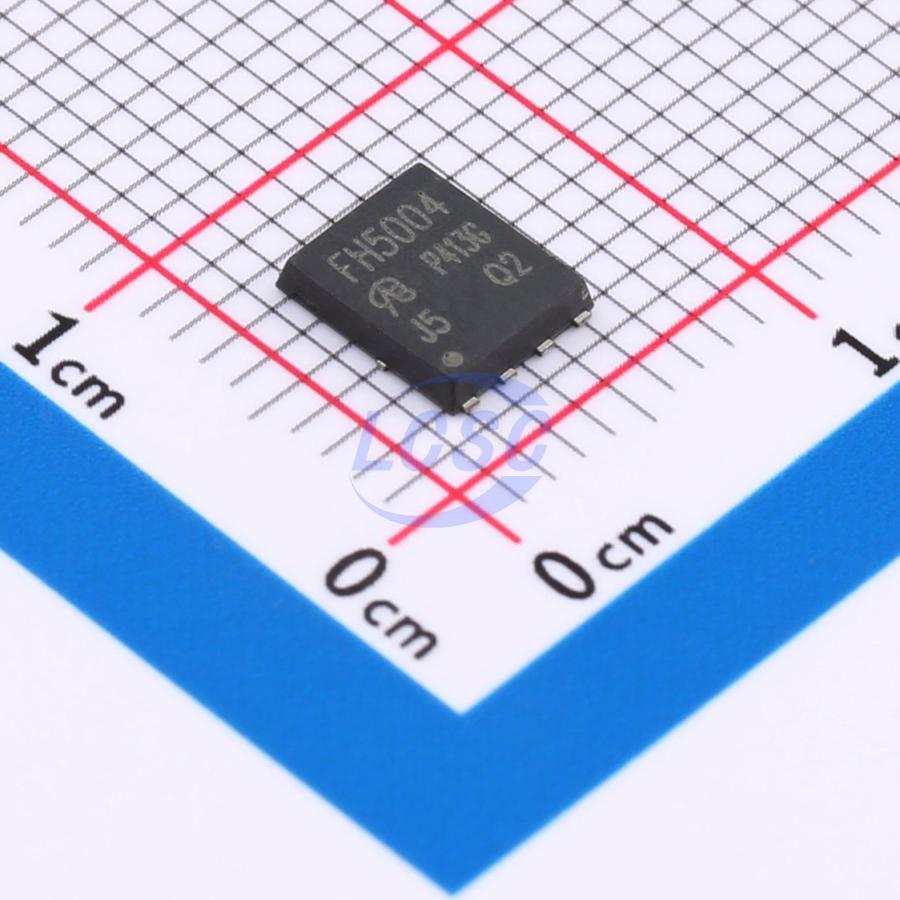

IRFH5004TRPBF-VB
N-Channel 40V 120A 83W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 40V 120A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFH5004TRPBF-VB
- Store part #
- C29778732
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29778732
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.84 | ₹192.84 |
| 10+ | ₹159.43 | ₹1,594.30 |
| 30+ | ₹141.16 | ₹4,234.80 |
| 100+ | ₹120.37 | ₹12,037.00 |
| 500+ | ₹111.12 | ₹55,560.00 |
| 1,000+ | ₹107.14 | ₹1,07,140.00 |
1 × ₹192.84
₹192.84
excl. GST
₹227.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IRFH5004TRPBF-VB
₹192.84 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 610pF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 4.75nF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 275pF
- RDS(on)
- 2.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 78nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
