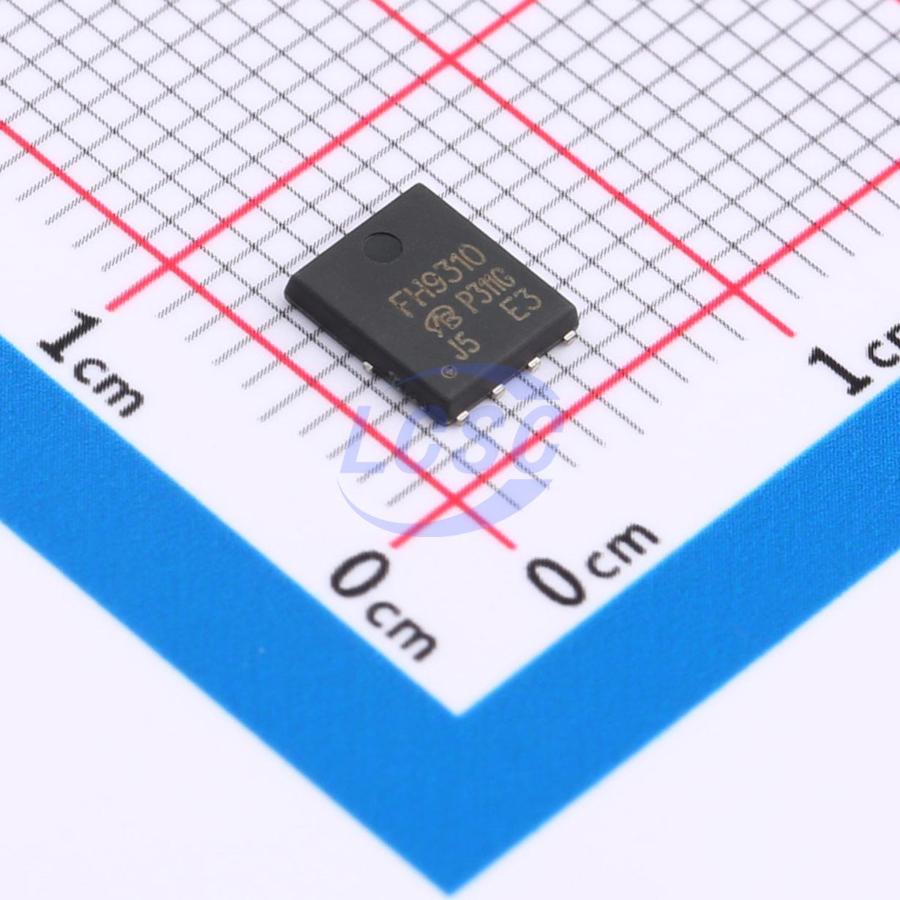

IRFH9310TRPBF-VB
P-Channel 30V 100A 104W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET P-CH 30V 100A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFH9310TRPBF-VB
- Store part #
- C7463908
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C7463908
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹243.05 | ₹243.05 |
| 10+ | ₹211.19 | ₹2,111.90 |
| 30+ | ₹193.54 | ₹5,806.20 |
| 100+ | ₹173.74 | ₹17,374.00 |
| 500+ | ₹142.74 | ₹71,370.00 |
| 1,000+ | ₹138.86 | ₹1,38,860.00 |
1 × ₹243.05
₹243.05
excl. GST
₹286.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IRFH9310TRPBF-VB
₹243.05 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.215nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 8.65nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 1.125nF
- RDS(on)
- 3.2mΩ@10V;5mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 167nC@10V;78nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
