VBsemi ElecDatasheet (PDF)

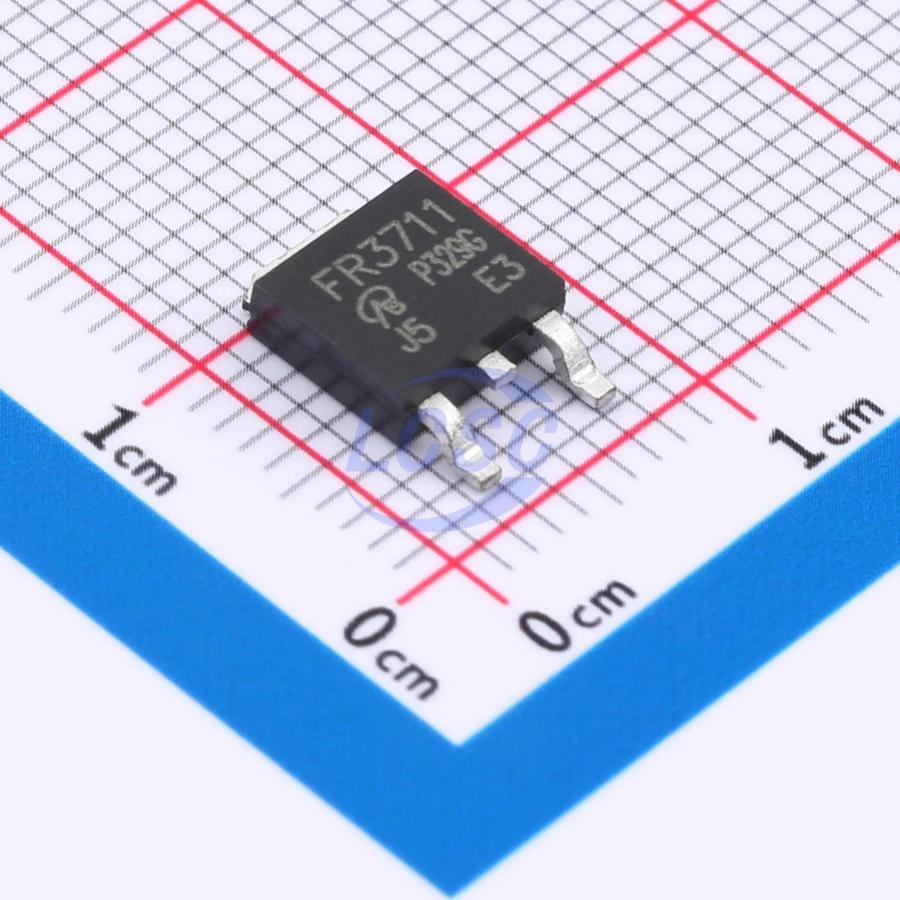

IRFR3711TRPBF-VB
N-Channel 20V 120A 250W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 20V 120A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFR3711TRPBF-VB
- Store part #
- C19626839
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C19626839
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.28 | ₹68.28 |
| 10+ | ₹54.20 | ₹542.00 |
| 30+ | ₹48.32 | ₹1,449.60 |
| 100+ | ₹40.76 | ₹4,076.00 |
| 500+ | ₹37.40 | ₹18,700.00 |
| 1,000+ | ₹35.30 | ₹35,300.00 |
1 × ₹68.28
₹68.28
excl. GST
₹80.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR3711TRPBF-VB
₹68.28 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 6.201nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 3.5mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 257nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.376 g
Overview
Applications
- OR Gate Application - Server - DC-DC Conversion
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) and unclamped inductive switching (UIS) tested
- Compliant with EU RoHS Directive 2011/65/EU
