VBsemi ElecDatasheet (PDF)

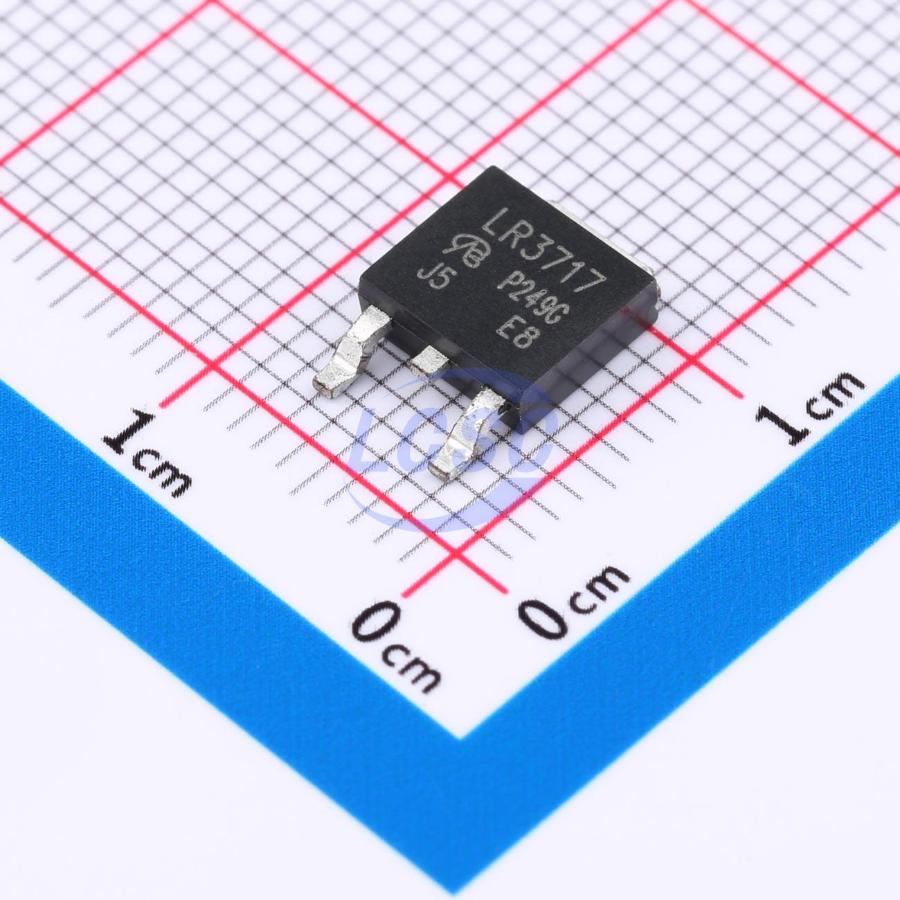

IRLR3717TRPBF-VB
N-Channel 20V 120A 250W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 20V 120A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLR3717TRPBF-VB
- Store part #
- C5355690
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C5355690
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.66 | ₹84.66 |
| 10+ | ₹68.69 | ₹686.90 |
| 30+ | ₹60.71 | ₹1,821.30 |
| 100+ | ₹52.73 | ₹5,273.00 |
| 500+ | ₹47.89 | ₹23,945.00 |
| 1,000+ | ₹45.38 | ₹45,380.00 |
1 × ₹84.66
₹84.66
excl. GST
₹99.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLR3717TRPBF-VB
₹84.66 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 6.201nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2.5mΩ@4.5V;3.5mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
MDT30N10 utilizes advanced trench technology to deliver excellent on-resistance RDS(ON) and low gate charge. It is suitable for a wide range of applications.
Applications
- OR Gate Application - Server - DC-DC Conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZE100N02#C700617VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹85.29 · 40 in stock | View |
 | IRFR3711TRPBF-VB#C19626839VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 27 | ₹68.28 · 27 in stock | View |
 | RU3080L-VB#C22389750VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 60 | ₹173.95 · 60 in stock | View |
 | VBE1302#C480950VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 188 | ₹166.83 · 188 in stock | View |
 | VBE1202#C516940VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 38 | ₹85.92 · 38 in stock | View |
