InfineonDatasheet (PDF)

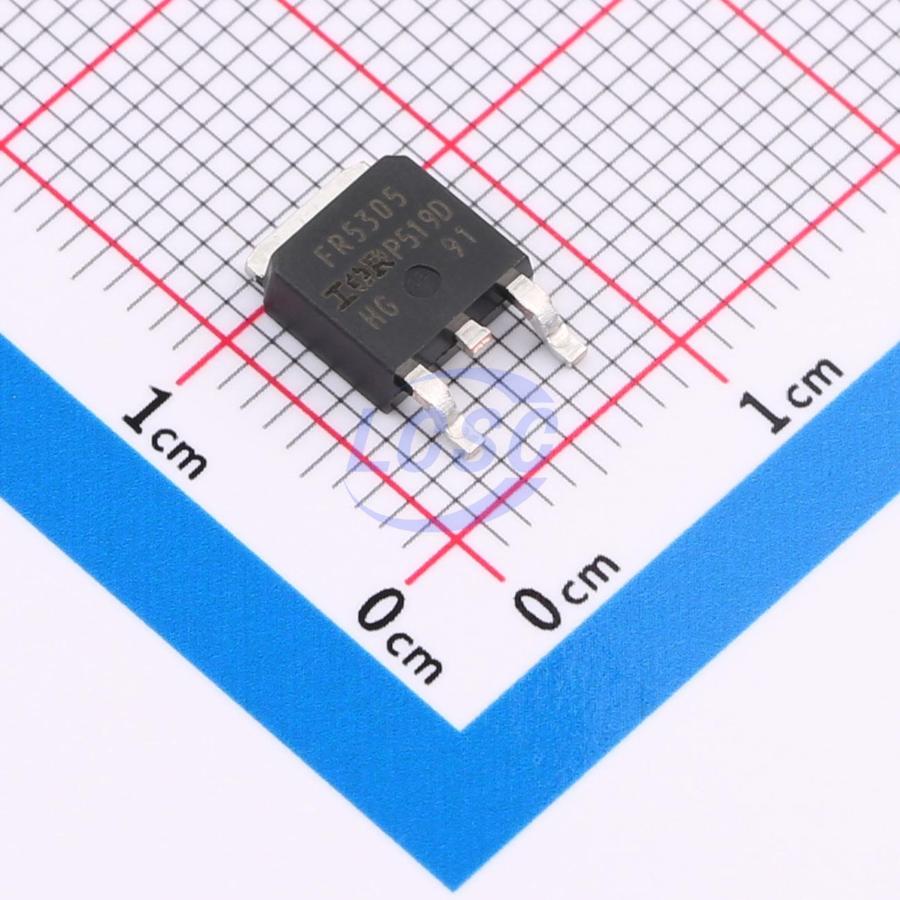

IRFR5305TRPBF
P-Channel 55V 31A 110W Surface Mount DPAK(TO-252AA)
PopularDPAK(TO-252AA)ROHS3 CompliantActive
MOSFET P-CH 55V 31A DPAK(TO-252AA)
- Manufacturer
- Infineon
- Manufacturer part #
- IRFR5305TRPBF
- Store part #
- C2624
- Package / case
- DPAK(TO-252AA)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,371 in stock
#C2624
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.77 | ₹52.77 |
| 10+ | ₹40.83 | ₹408.30 |
| 30+ | ₹34.97 | ₹1,049.10 |
| 100+ | ₹29.75 | ₹2,975.00 |
| 500+ | ₹27.58 | ₹13,790.00 |
| 1,000+ | ₹26.71 | ₹26,710.00 |
1 × ₹52.77
₹52.77
excl. GST
₹62.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR5305TRPBF
₹52.77 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 520pF
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 31A
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 65mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 63nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.64 g
Overview
Fifth Generation HEXFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D-Pak is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications.
Key features
- Ultra Low On-Resistance
- Surface Mount (IRFR5305)
- Straight Lead (IRFU5305)
- Advanced Process Technology
- Fast Switching
- Fully Avalanche Rated
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR5305TRPBF(XBLW)#C22451446XBLW · TO-252-2L | XBLW | TO-252-2L | 1,470 | ₹39.25 · 1,470 in stock | View |
 | IRFR5305-JSM#C2874618JSMSEMI · TO-252 | JSMSEMI | TO-252 | 11,146 | ₹63.53 · 11,146 in stock | View |
 | VBE2658#C416267VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹99.46 · 1 in stock | View |
 | TPM6052PK3#C42407112TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 2,604 | ₹57.58 · 2,604 in stock | View |
 | HSU6115#C508799HUASHUO · TO-252-2 | HUASHUO | TO-252-2 | 2,310 | ₹56.77 · 2,310 in stock | View |
