VISHAYDatasheet (PDF)

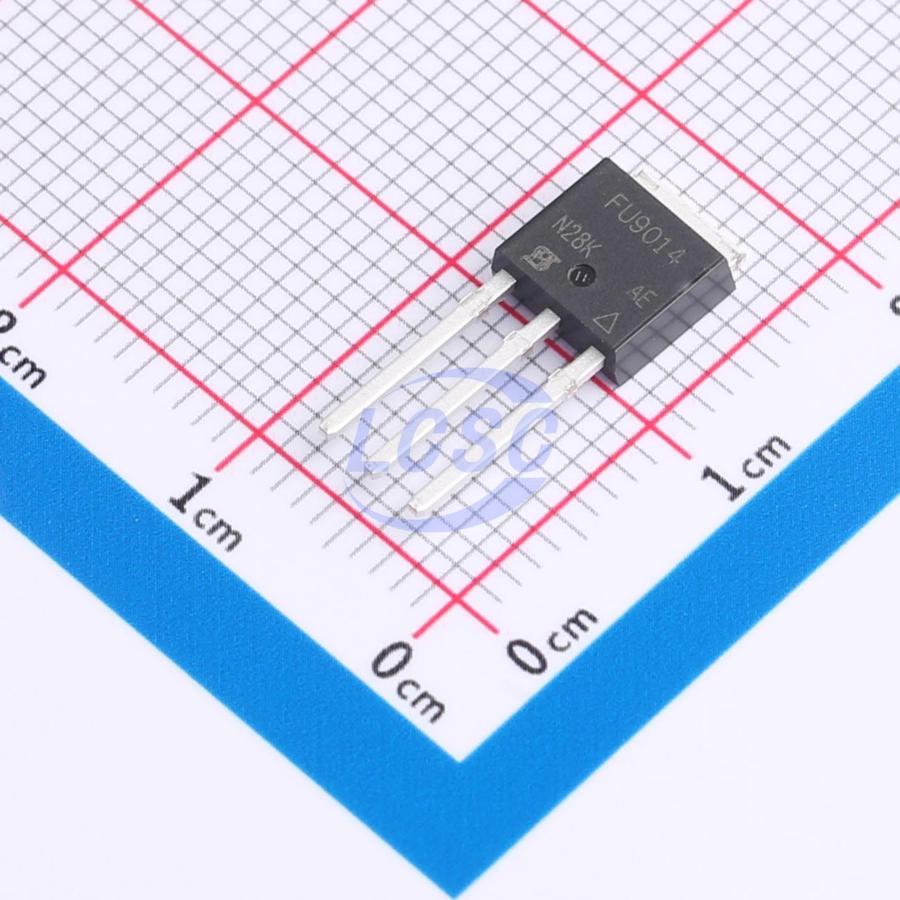

IRFU9014PBF
P-Channel 60V 5.1A 2.5W Through Hole TO-251AA
TO-251AAROHS3 CompliantActive
MOSFET P-CH 60V 5.1A TO-251AA
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFU9014PBF
- Store part #
- C3290820
- Package / case
- TO-251AA
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C3290820
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.30 | ₹141.30 |
| 10+ | ₹138.45 | ₹1,384.50 |
| 30+ | ₹136.41 | ₹4,092.30 |
| 100+ | ₹134.39 | ₹13,439.00 |
1 × ₹141.30
₹141.30
excl. GST
₹166.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
IRFU9014PBF
₹141.30 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 270pF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 5.1A
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 500mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.87 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface-mount applications.
Applications
- DC/DC converters
- Motor drivers
Key features
- RoHS COMPLIANT HALOGEN FREE available
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Surface mount (IRFR9014, SiHFR9014)
- Straight lead (IRFU9014, SiHFU9014)
- Available in tape and reel
- P-channel
- Fast switching
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFU9024NPBF#C163645Infineon · TO-251(IPAK) | Infineon | TO-251(IPAK) | 3,195 | ₹49.59 · 3,195 in stock | View |
 | IRFU9120PBF#C727644VISHAY · TO-251 | VISHAY | TO-251 | 447 | ₹286.79 · 447 in stock | View |
 | IRFU5410PBF-VB#C20417438VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 25 | ₹87.52 · 25 in stock | View |
 | 18P10AGJ-HF-VB#C29779139VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 100 | ₹86.00 · 100 in stock | View |
 | IRFU9024PBF#C3033VISHAY · TO-251(IPAK) | VISHAY | TO-251(IPAK) | 9 | ₹238.38 · 9 in stock | View |
