InfineonDatasheet (PDF)

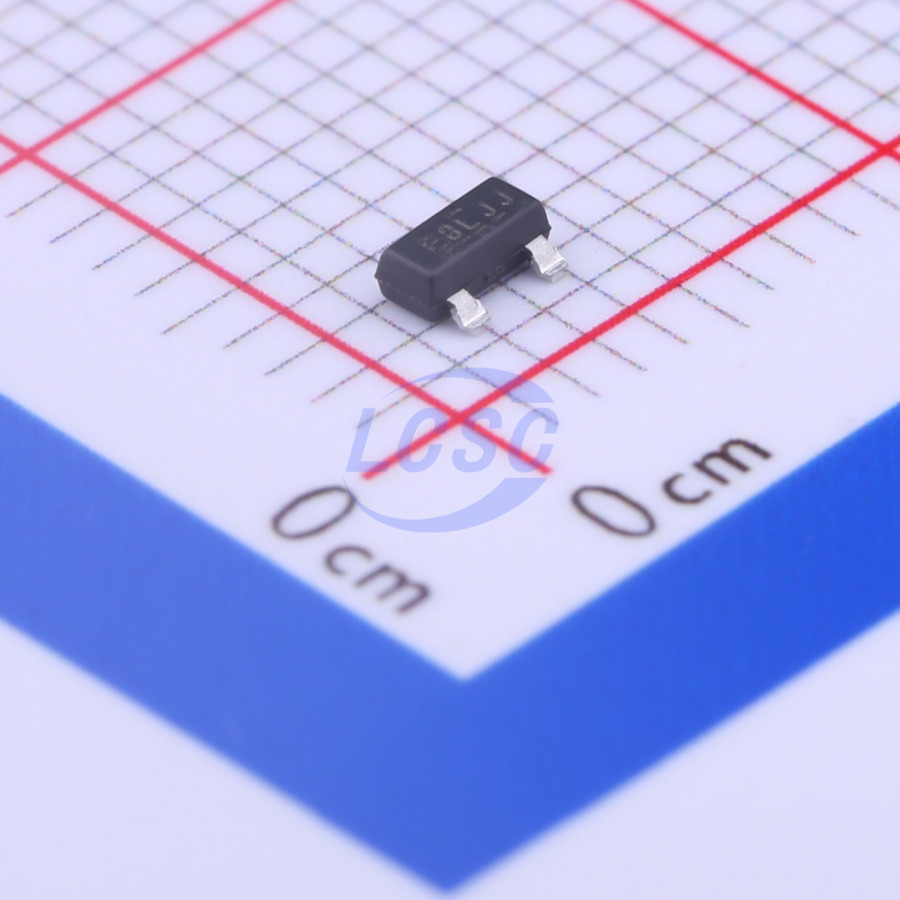

IRLML6402TRPBF
P-Channel 20V 3.7A 1.3W Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 3.7A SOT-23
- Manufacturer
- Infineon
- Manufacturer part #
- IRLML6402TRPBF
- Store part #
- C2593
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,482 in stock
#C2593
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.63 | ₹65.63 |
| 10+ | ₹52.59 | ₹525.90 |
| 30+ | ₹46.29 | ₹1,388.70 |
| 100+ | ₹40.64 | ₹4,064.00 |
| 500+ | ₹39.12 | ₹19,560.00 |
| 1,000+ | ₹38.04 | ₹38,040.00 |
1 × ₹65.63
₹65.63
excl. GST
₹77.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRLML6402TRPBF
₹65.63 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 145pF
- Ciss-Input Capacitance
- 633pF
- Pd - Power Dissipation
- 1.3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.7A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 65mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
These P-Channel MOSFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in battery and load management. A thermally enhanced large pad leadframe has been incorporated into the standard SOT-23 package to produce a HEXFET Power MOSFET with the industry's smallest footprint. This package, dubbed the Micro3, is ideal for applications where printed circuit board space is at a premium. The low profile (<1.1 mm) of the Micro3 allows it to fit easily into extremely thin application environments such as portable electronics and PCMClA cards. The thermal resistance and power dissipation are the best available.
Applications
- battery and load management
- portable electronics
- PCMClA cards
Key features
- Ultra Low On-Resistance
- Fast Switching
- Low Profile (<1.1 mm)
- Available in Tape and Reel
- Lead-Free
- RoHS Compliant, Halogen-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLML6402#C2886430Guangdong Hottech · SOT-23 | Guangdong Hottech | SOT-23 | 6,240 | ₹8.19 · 6,240 in stock | View |
 | WST3401#C105162Winsok Semicon · SOT-23-3L | Winsok Semicon | SOT-23-3L | 1,480 | ₹9.23 · 1,480 in stock | View |
 | KIRLML6402TRPBF#C2891690KUU · SOT-23 | KUU | SOT-23 | 3,730 | ₹7.37 · 3,730 in stock | View |
 | RU3401C#C2977199Shenzhen ruichips Semicon · SOT-23-3 | Shenzhen ruichips Semicon | SOT-23-3 | 5 | ₹12.18 · 5 in stock | View |
 | AP2P053N#C380196APEC · SOT-23S | APEC | SOT-23S | 2,975 | ₹14.01 · 2,975 in stock | View |
