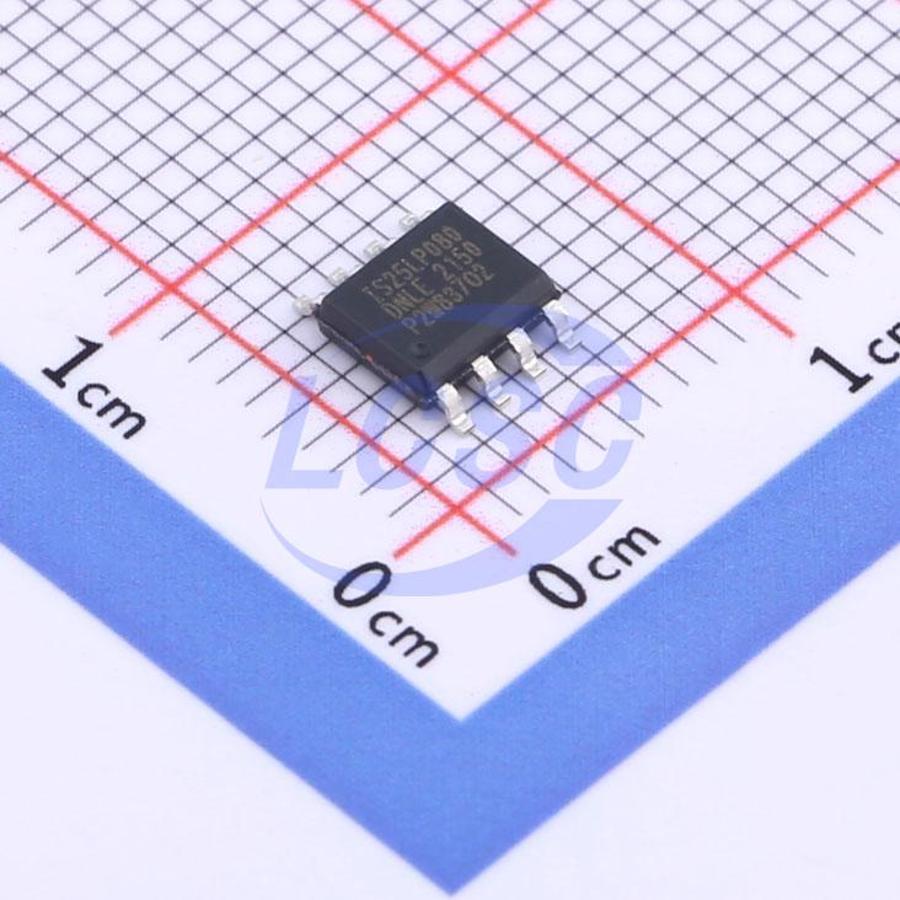

IS25LP080D-JNLE-TR

The IS25LP080D and IS25WP080D/040D/020D Serial Flash memory offers a versatile storage solution with high flexibility and performance in a simplified pin count package. ISSI’s “Industry Standard Serial Interface” Flash is for systems that require limited space, a low pin count, and low power consumption. The device is accessed through a 4-wire SPI Interface consisting of a Serial Data Input (SI), Serial Data Output (SO), Serial Clock (SCK), and Chip Enable (CE#) pins, which can also be configured to serve as multi-I/O (see pin descriptions). The device supports Dual and Quad I/O as well as standard, Dual Output, and Quad Output SPI. Clock frequencies of up to 133MHz allow for equivalent clock rates of up to 532MHz (133MHz x 4) which equates to 66Mbytes/s of data throughput. The IS25xP series of Flash adds support for DTR (Double Transfer Rate) commands that transfer addresses and read data on both edges of the clock. These transfer rates can outperform 16-bit Parallel Flash memories allowing for efficient memory access to support XIP (execute in place) operation. ate of the memory array is erased (all bits are set to 1) when shipped from the factory QPI (Quad Peripheral Interface) supports 2-cycle instruction further reducing instruction times. Pages can be erased in groups of 4Kbyte sectors, 32Kbyte blocks, 64Kbyte blocks, and/or the entire chip. The uniform sector and block architecture allows for a high degree of flexibility so that the device can be utilized for a broad variety of applications requiring solid data retention.

Key features

• Industry Standard Serial Interface
• High Performance Serial Flash (SPI)
• Flexible & Efficient Memory Architecture
• Efficient Read and Program modes
• Low Power with Wide Temp. Ranges
• Advanced Security Protection
• Industry Standard Pin-out & Packages
• Software and Hardware Write Protection
• Power Supply Lock Protect
• 4x256-Byte Dedicated Security Area with OTP User-lockable Bits
• 128 bit Unique ID for Each Device (Call Factory)
• Single Voltage Supply IS25LP: 2.30V to 3.60V IS25WP: 1.65V to 1.95V
• 10 mA Active Read Current
• 8 µA Standby Current
• 1 µA Deep Power Down
• Temp Grades: Extended: -40℃ to +105℃ Auto Grade (A3): - -40℃ to +125℃
• Software and Hardware Write Protection
• Power Supply Lock Protect
• 4x256-Byte Dedicated Security Area with OTP User-lockable Bits
• 128 bit Unique ID for Each Device (Call Factory)
