ISSI

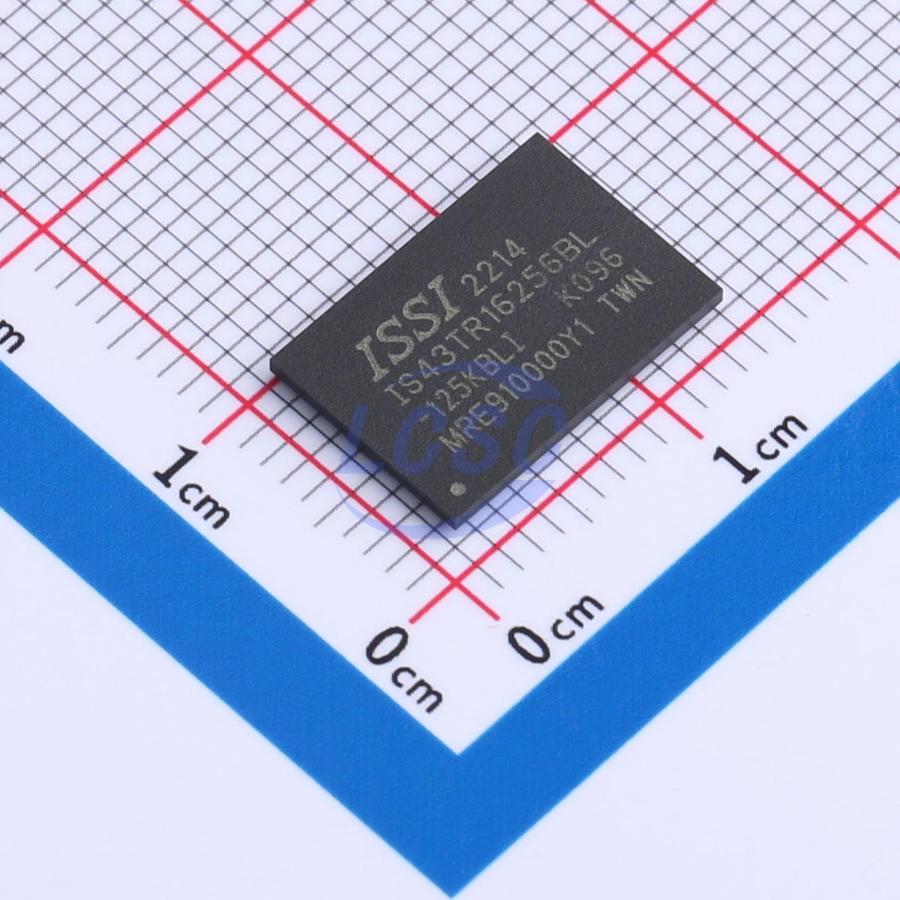

IS43TR16256BL-125KBLITR
4Gbit 800MHz DDR3L SDRAM BGA-96 Memory RoHS
PopularBGA-96ROHS CompliantActive
512Mx8,256Mx16 4Gb DDR3 SDRAM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,419 in stock
#C2940752
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹4,699.92 | ₹4,699.92 |
| 10+ | ₹4,474.57 | ₹44,745.70 |
| 30+ | ₹3,852.46 | ₹1,15,573.80 |
| 100+ | ₹3,511.96 | ₹3,51,196.00 |
1 × ₹4,699.92
₹4,699.92
excl. GST
₹5,545.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
IS43TR16256BL-125KBLITR
₹4,699.92 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+95℃
- Features
- Auto self-refresh;Asynchronous reset function;Auto precharge function;Write leveling function;Dynamic on-chip termination;ZQ calibration function;Data mask function
- Refresh Current
- 30mA
- Memory Size
- 4Gbit
- Voltage - Supply
- 102mA;1.283V~1.45V
- Clock Frequency
- 800MHz
- Memory Format
- DDR3L SDRAM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.546 g
Overview
Key features
- Standard Voltage: VDD and V_DDQ = 1.5V ± 0.075V
- Low Voltage (L): VDD and V_DDQ = 1.35V + 0.1V, -0.067V
- Backward compatible to 1.5V
- High speed data transfer rates with system frequency up to 1066 MHz
- 8 internal banks for concurrent operation
- 8n-Bit pre-fetch architecture
- Programmable CAS Latency
- Programmable Additive Latency: 0, CL - 1, CL - 2
- Programmable CAS WRITE latency (CWL) based on tCK
- Programmable Burst Length: 4 and 8
- Programmable Burst Sequence: Sequential or Interleave
- BL switch on the fly
- Auto Self Refresh(ASR)
- Self Refresh Temperature(SRT) Refresh Interval:
- 7.8 μs (8192 cycles/64 ms) TC = -40℃ to 85℃
- 3.9 μs (8192 cycles/32 ms) Tc = 85℃ to 105℃
- 1.95 μs (8192 cycles/16 ms) Tc = 105℃ to 115℃
- 0.97 μs (8192 cycles/8 ms) TC = 115℃ to 125℃
- Configuration: 512Mx8, 256Mx16
- Partial Array Self Refresh
- Asynchronous RESET pin
- TDQS (Termination Data Strobe) supported (x8 only)
- OCD (Off-Chip Driver Impedance Adjustment)
- Dynamic ODT (On-Die Termination)
- Driver strength : RZQ/7, RZQ/6 (RZO = 240 Ω)
- Write Leveling Up to 200MHz in DLL off mode
- Operating temperature:
- Commercial TC = 0℃ to +95℃
- Industrial TC = -40℃ to +95℃
- Automotive, A1 TC = -40℃ to +95℃
- Automotive, A2 TC = -40℃ to +105℃
- Automotive, A25 TC = -40℃ to +115℃
- Automotive, A3 TC = -40℃ to +125℃
