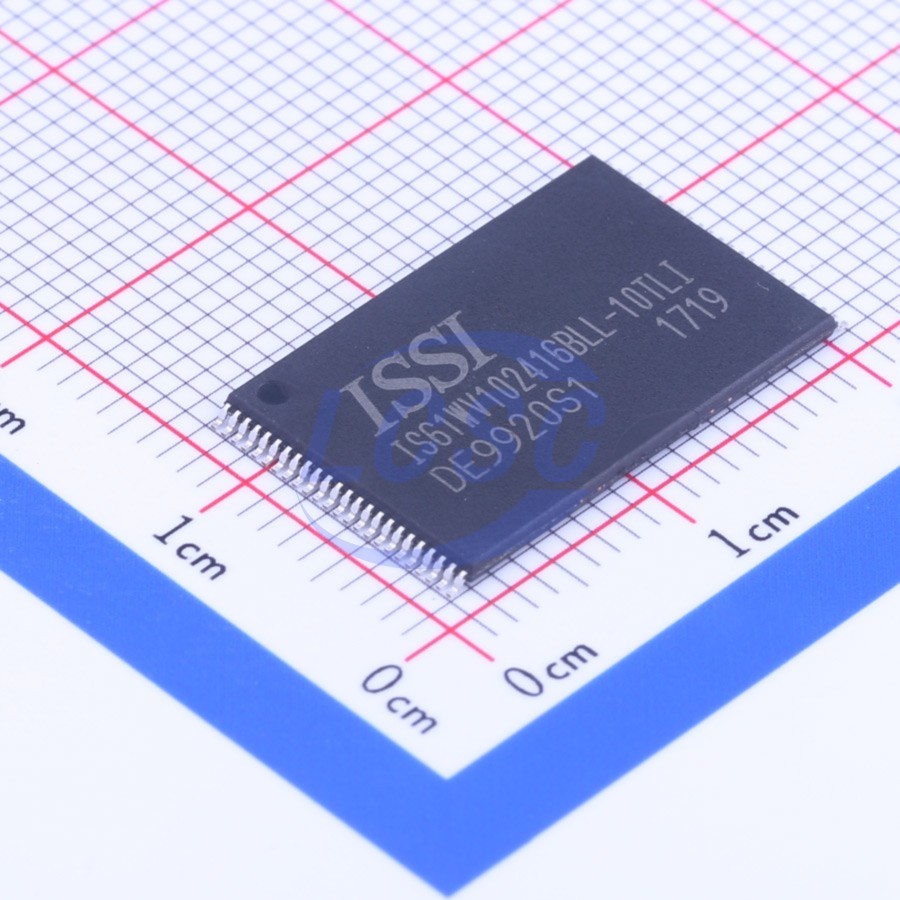

IS61WV102416BLL-10TLI
16Mbit TSOPI-48 Memory RoHS
1M X 16 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM WITH 3.3V SUPPLY
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,163 in stock
#C28124
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,451.47 | ₹3,451.47 |
| 10+ | ₹3,145.80 | ₹31,458.00 |
| 30+ | ₹2,952.88 | ₹88,586.40 |
| 96+ | ₹2,784.52 | ₹2,67,313.92 |
1 × ₹3,451.47
₹3,451.47
excl. GST
₹4,072.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 96 per tray
IS61WV102416BLL-10TLI
₹3,451.47 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Auto power-down function
- Memory Size
- 16Mbit
- Voltage - Supply
- 2.4V~3.6V;95mA
- Access Time
- 8ns
- Standby Supply Current
- 25mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- 3A991B2A
- Packaging
- Tray
- Standard pack
- 96 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.666 g
Overview
The ISSI IS61WV102416ALL/BLL and IS64WV102416BLL are high-speed, 16M-bit static RAMs organized as 1024K words by 16 bits. It is fabricated using high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels. Easy memory expansion is provided by using Chip Enable and Output Enable inputs, CE and OE. The active LOW Write Enable (WE) controls both writing and reading of the memory. A data byte allows Upper Byte (UB (overline)) and Lower Byte (LB) access. The device is packaged in the JEDEC standard 48-pin TSOP Type I and 48-pin Mini BGA (9mm x 11mm).
Key features
- High-speed access times: 8, 10, 20 ns
- High-performance, low-power CMOS process
- Multiple center power and ground pins for greater noise immunity
- Easy memory expansion with CE and OE options
- CE power-down
- Fully static operation: no clock or refresh required
- TTL compatible inputs and outputs
- Single power supply Vdd 1.65V to 2.2V (IS61WV102416ALL) speed = 20ns for Vdd 1.65V to 2.2V Vdd 2.4V to 3.6V (IS61/64WV102416BLL) speed = 10ns for VDD 2.4V to 3.6V speed = 8ns for Vdd 3.3V±5%
- Packages available: 48-ball miniBGA (9mm x 11mm), 48-pin TSOP (Type I)
- Industrial and Automotive Temperature Support
- Lead-free available
- Data control for upper and lower bytes
