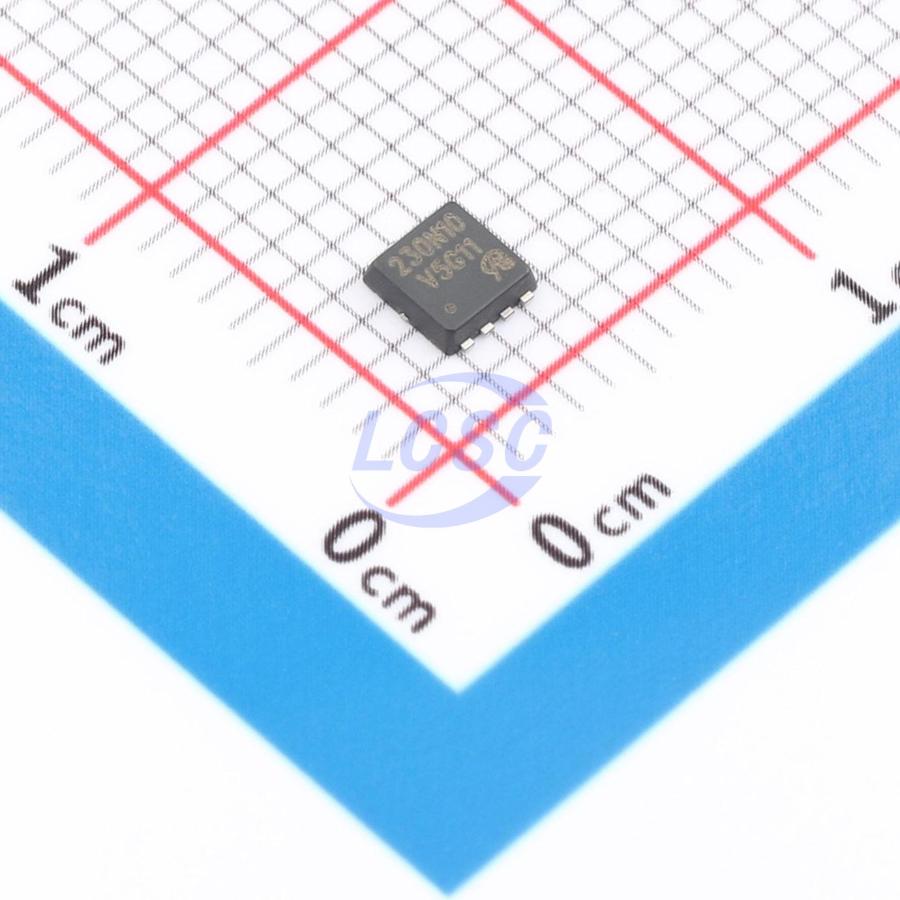

ISZ230N10NM6ATMA1-VB
100V 50A 136W 11mΩ@10V 1 N-channel N-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
MOSFET N-CH 100V 50A DFN-8(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ISZ230N10NM6ATMA1-VB
- Store part #
- C50387033
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C50387033
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.49 | ₹106.49 |
| 10+ | ₹85.84 | ₹858.40 |
| 30+ | ₹75.41 | ₹2,262.30 |
| 100+ | ₹65.20 | ₹6,520.00 |
| 500+ | ₹58.90 | ₹29,450.00 |
| 1,000+ | ₹55.86 | ₹55,860.00 |
1 × ₹106.49
₹106.49
excl. GST
₹125.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ISZ230N10NM6ATMA1-VB
₹106.49 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 5nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.41 g
