VBsemi ElecDatasheet (PDF)

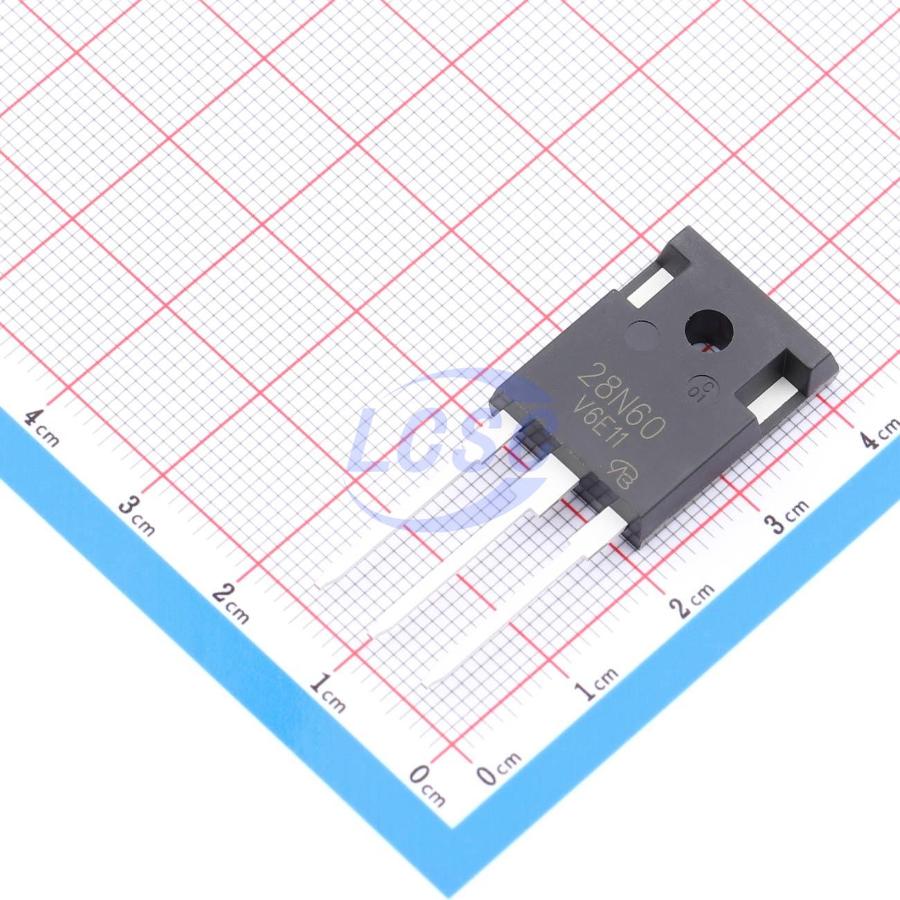

IXFQ28N60P3-VB
650V 47A 150W 50mΩ@10V 1 N-channel N-Channel TO-3P Single FETs, MOSFETs
TO-3PRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IXFQ28N60P3-VB
- Store part #
- C54177234
- Package / case
- TO-3P
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C54177234
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹595.18 | ₹595.18 |
| 10+ | ₹512.82 | ₹5,128.20 |
| 30+ | ₹463.94 | ₹13,918.20 |
| 90+ | ₹414.39 | ₹37,295.10 |
| 600+ | ₹391.58 | ₹2,34,948.00 |
| 900+ | ₹381.37 | ₹3,43,233.00 |
1 × ₹595.18
₹595.18
excl. GST
₹702.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IXFQ28N60P3-VB
₹595.18 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 47A
- Output Capacitance(Coss)
- 81pF
- Ciss-Input Capacitance
- 5.3nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.34 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID)
- Fluorescent ballast lighting
- Industrial
- Welding
- Induction heating
- Motor drives
- Battery chargers
- Renewable energy
- Solar (photovoltaic inverters)
Key features
- Low figure of merit (FOM): Ron × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
