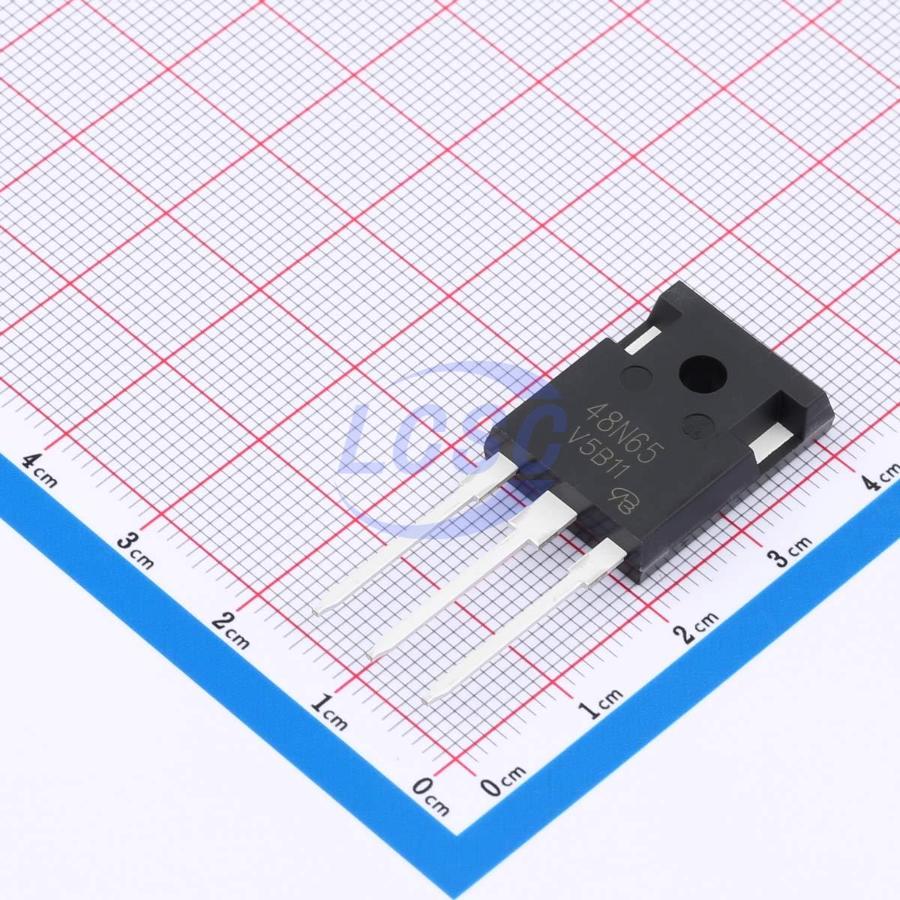

IXTQ48N65X2M-VB
N-Channel 650V 47A 415W Through Hole TO-3P
TO-3PRoHSActive
MOSFET N-CH 650V 47A TO-3P
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IXTQ48N65X2M-VB
- Store part #
- C46527466
- Package / case
- TO-3P
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C46527466
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹659.29 | ₹659.29 |
| 10+ | ₹576.93 | ₹5,769.30 |
| 30+ | ₹435.90 | ₹13,077.00 |
| 90+ | ₹386.58 | ₹34,792.20 |
| 600+ | ₹363.76 | ₹2,18,256.00 |
| 900+ | ₹353.33 | ₹3,17,997.00 |
1 × ₹659.29
₹659.29
excl. GST
₹777.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IXTQ48N65X2M-VB
₹659.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 251pF
- Current - Continuous Drain(Id)
- 47A
- Ciss-Input Capacitance
- 5.682nF
- Pd - Power Dissipation
- 415W
- Reverse Transfer Capacitance (Crss)
- 1pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 273nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.84 g
Overview
Applications
- Server and telecom power supplies
- Switched-mode power supplies (SMPS)
- Power factor correction (PFC) supplies
- Lighting
- High-intensity discharge (HID) lamps
- Fluorescent lamp ballast lighting
- Industrial applications
- Welding
- Induction heating
- Motor drives
- Battery chargers
- Renewable energy
- Solar (photovoltaic inverters)
Key features
- Low figure of merit (FOM) R\text on x Qg
- Low input capacitance \left(Ciss\right)
- Reduced switching and conduction losses
- Ultra-low gate charge \left(Qg\right)
- Avalanche energy rated (UIS)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3131-VB#C22389385VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹729.73 · 5 in stock | View |
 | IXFQ28N60P3-VB#C54177234VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 10 | ₹595.18 · 10 in stock | View |
| FCA47N60-VB#C54176997VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | On request | ₹1,365.04 · 0 in stock | View | |
| FCA47N60F-VB#C54176998VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | On request | ₹1,365.04 · 0 in stock | View | |
| FQA44N30-VB#C54177045VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | On request | ₹1,365.04 · 0 in stock | View | |
