JSMSEMIDatasheet (PDF)

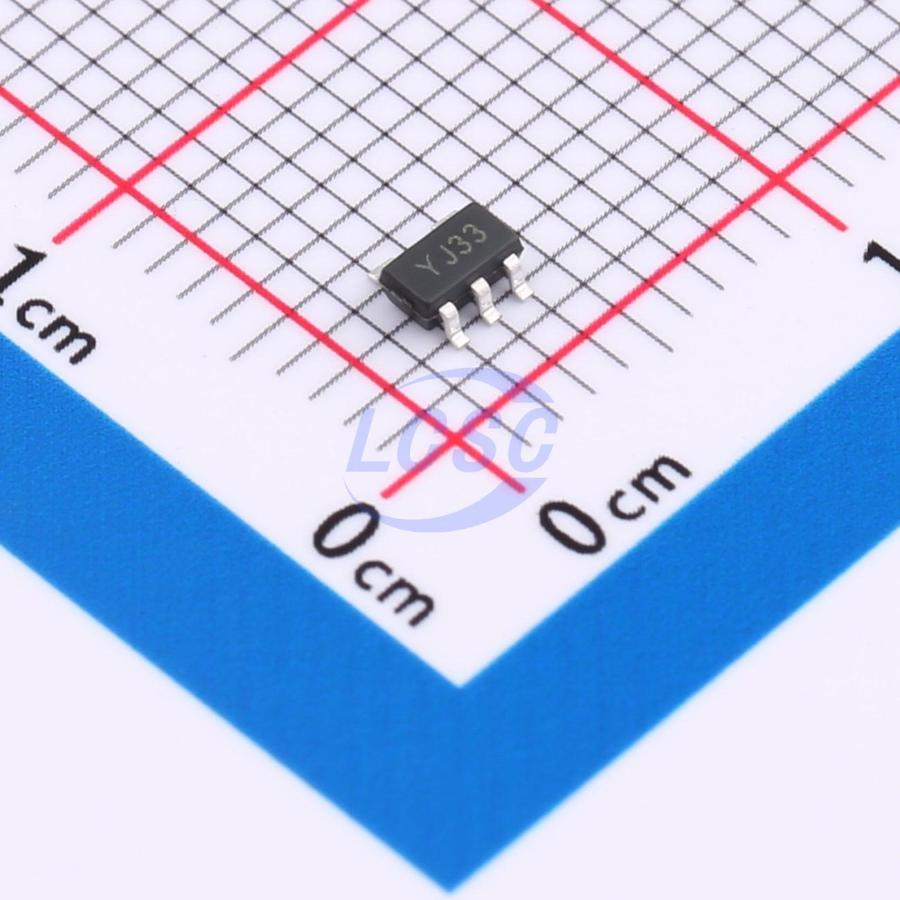

JSM2019-3.3YN5G/TR
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
300mA Low Dropout Voltage Linear Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM2019-3.3YN5G/TR
- Store part #
- C22447124
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,970 in stock
#C22447124
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.02 | ₹100.20 |
| 100+ | ₹7.96 | ₹796.00 |
| 300+ | ₹6.93 | ₹2,079.00 |
| 3,000+ | ₹5.95 | ₹17,850.00 |
| 6,000+ | ₹5.33 | ₹31,980.00 |
| 9,000+ | ₹5.03 | ₹45,270.00 |
10 × ₹10.02
₹100.20
excl. GST
₹118.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JSM2019-3.3YN5G/TR
₹100.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The JSM2019 series is a family of low dropout (LDO) voltage regulators featuring a wide input voltage range (2.3V to 6V), low dropout voltage, low power consumption, and compact packaging. It offers fast transient response, making it suitable for applications requiring rapid load transients. By selecting a device with an EN pin and pulling it low, the device can enter shutdown mode. In this mode, the shutdown current can be as low as 100nA (typical). The JSM2019 series linear regulators maintain stability with ceramic output capacitors across a wide input voltage range of 2.3V to 6V and the full output load current range (0mA to 300mA).
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, PDAs, and personal digital assistants
- Wireless communication devices
- Audio/video equipment
- Automotive navigation systems
Key features
- Fast transient response
- ±2% output accuracy
- 300mA output current
- 100nA shutdown current (optional)
- Wide input voltage range: 2.3V to 6V
- Dropout voltage: 0.06V at 100mA/Vout 3.3V
- Fixed output voltage: 1.8V, 3.3V
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SLP5907MFX-3.3/NOPB#C41421775JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 695 | ₹18.38 · 695 in stock | View |
 | RT9193-33GB-JSM#C39846936JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 31,675 | ₹12.11 · 31,675 in stock | View |
