JSMSEMIDatasheet (PDF)

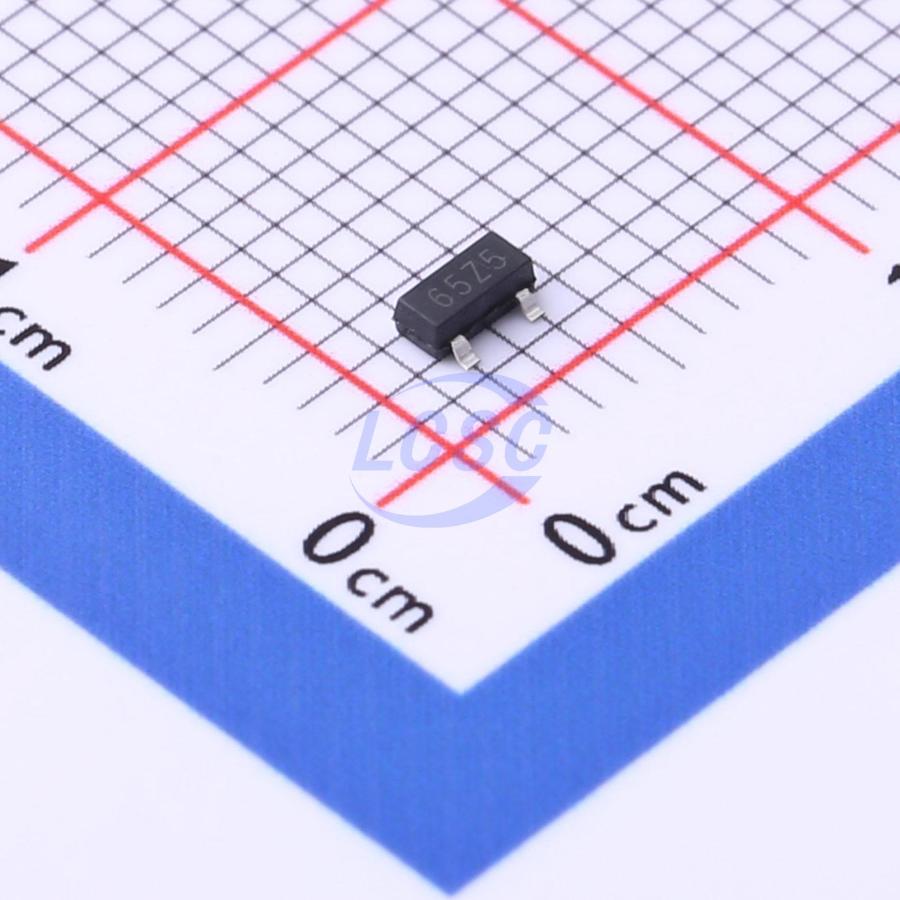

JSM6206A3.0XG
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
SOT-23ROHS CompliantActive
Linear voltage regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM6206A3.0XG
- Store part #
- C2845116
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,640 in stock
#C2845116
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.31 | ₹86.20 |
| 200+ | ₹3.37 | ₹674.00 |
| 600+ | ₹2.84 | ₹1,704.00 |
| 3,000+ | ₹2.54 | ₹7,620.00 |
| 9,000+ | ₹2.26 | ₹20,340.00 |
| 21,000+ | ₹2.12 | ₹44,520.00 |
20 × ₹4.31
₹86.20
excl. GST
₹101.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JSM6206A3.0XG
₹86.20 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
The JSM6206 series are CMOS step-down voltage regulators featuring high ripple rejection, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices offer a very low quiescent current (6.0μA Typ.) and can deliver 250mA of output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the small dropout voltage and low quiescent current, these devices are particularly well-suited for battery-powered applications where extended battery life is desired, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instruments
- Wireless control systems
- Automotive electronics
- Portable/handheld computers
- Voltage reference sources
Key features
- High-precision output voltage: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V~5.0V (step 0.1V)
- High current drive capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Ultra-low quiescent current (Typ. = 6.0μA)
- Usable as both regulator and voltage reference
- Low temperature coefficient
- Excellent line regulation: Typ. 0.03%/V
- Package: SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206P302MR-JSM#C18189742JSMSEMI · SOT-23-3 | JSMSEMI | SOT-23-3 | 300 | ₹2.49 · 300 in stock | View |
 | JSM6206A3.0MR#C2845117JSMSEMI · SOT-23-3 | JSMSEMI | SOT-23-3 | 8,020 | ₹5.94 · 8,020 in stock | View |
