JTDDatasheet (PDF)

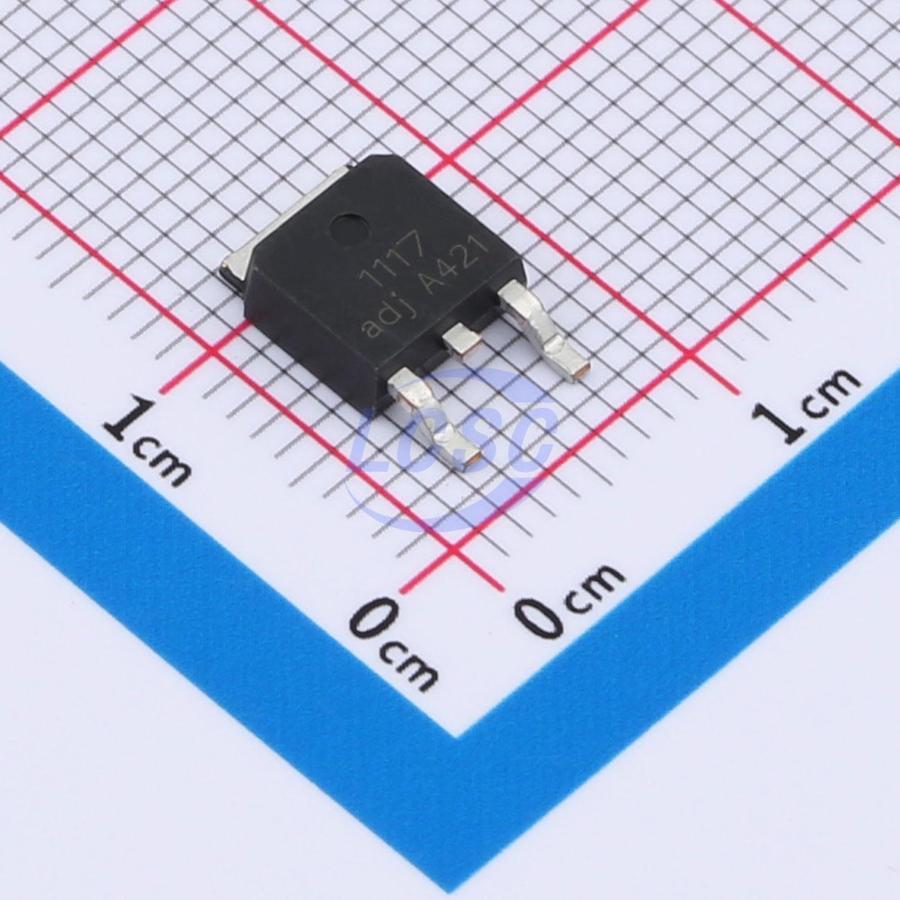

JTD1117A-ADJ(Q)
Positive Adjustable TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS CompliantActive
1A Adjustable / Fixed Low Dropout Linear Regulator
- Manufacturer
- JTD
- Manufacturer part #
- JTD1117A-ADJ(Q)
- Store part #
- C42443441
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C42443441
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.13 | ₹102.60 |
| 200+ | ₹3.98 | ₹796.00 |
| 600+ | ₹3.35 | ₹2,010.00 |
| 2,500+ | ₹2.96 | ₹7,400.00 |
| 10,000+ | ₹2.63 | ₹26,300.00 |
| 20,000+ | ₹2.45 | ₹49,000.00 |
20 × ₹5.13
₹102.60
excl. GST
₹121.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
JTD1117A-ADJ(Q)
₹102.60 for 20 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 18V
- Features
- Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.459 g
Overview
The 1117 A is a series of low dropout voltage regulators which can provide up to 1A of output current. The 1117A is available in six fixed voltage, 1.2, 1.8, 2.5, 3.3 and 5.0V. Additionally it is also available in adjustable version. On chip precision trimming adjusts the reference/ output voltage to within ± 2%. On-chip thermal limiting provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. The 1117 A series is available in SOT-223, TO-252, SOT89 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- Post Regulator for switching DC/DC Converter
- High Efficiency Linear Regulator
- Battery Chargers
- PC Add on Card
- Motherboard clock supplies
- LCD Monitor
- Set-top Box
Key features
- Low Dropout Voltage
- Load regulation: 0.5% Max
- Optimized for Low Voltage
- On-chip thermal limiting.
- Maximum Input Voltage : 18V
- Adjustable Output Voltage or Fixed 1.2V, 1.8V,2.5V, 3.3V, 5V
- Standard SOT-223,TO-252 ,SOT89 Packages
