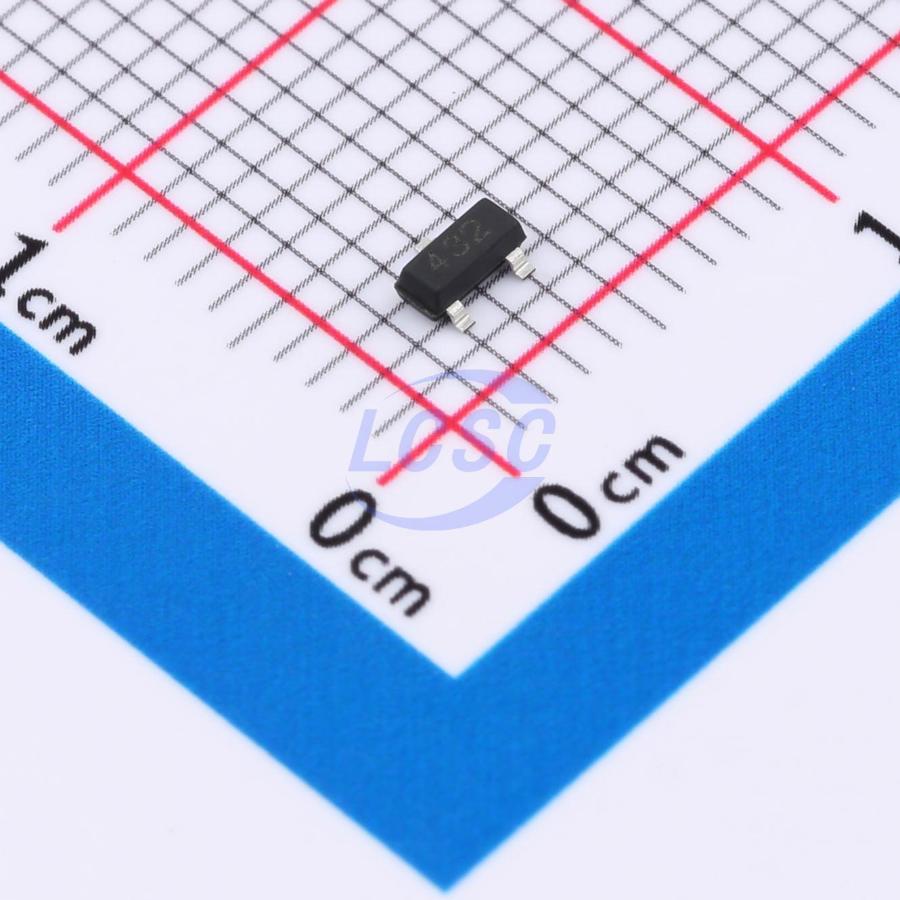

JTD432AZ
Linear Voltage Regulator IC Adjustable 1 Output 100mA SOT-23
SOT-23ROHS CompliantActive
Low-voltage adjustable precision shunt regulator
- Manufacturer
- JTD
- Manufacturer part #
- JTD432AZ
- Store part #
- C42443471
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C42443471
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.01 | ₹50.10 |
| 100+ | ₹3.97 | ₹397.00 |
| 300+ | ₹3.44 | ₹1,032.00 |
| 3,000+ | ₹3.04 | ₹9,120.00 |
| 6,000+ | ₹2.74 | ₹16,440.00 |
| 9,000+ | ₹2.58 | ₹23,220.00 |
10 × ₹5.01
₹50.10
excl. GST
₹59.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTD432AZ
₹50.10 for 10 + GST
Specifications
- Output Voltage
- 1.25V~18V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
Applications
- Graphic Card
- PC Motherboard
- Voltage Adapter
- Switching Power Supply
- Charger
Key features
- The 432 series ICs are low voltage three - terminal adjustable regulators with guaranteed thermal stability over a full operation range.
- These ICs feature sharp turn - on characteristics, low temperature coefficient and low output impedance.
- The output voltage can be set to any value between 1.25V and 18V with two external resistors.
- The 432 precision reference is offered in two voltage tolerance: 0.5% and 1.0%.
- These ICs are available in 4 packages: TO - 92 (bulk or ammo packing), SOT - 23, SOT - 23 - 5 and SOT - 89.
- Wide Programmable Precise Output Voltage from 1.25V to 18V
- High Stability under Capacitive Load
- Low Temperature Deviation: 3mV Typical
- Low Equivalent Full - Range Temperature Coefficient: 20PPM/°C Typical
- Low Dynamic Output Resistance: 0.05Ω Typical
- High Sink Current Capacity from 0.1 mA to 100 mA
- Low Output Noise
- Wide Operating Range of - 40 to +125°C
