JTDDatasheet (PDF)

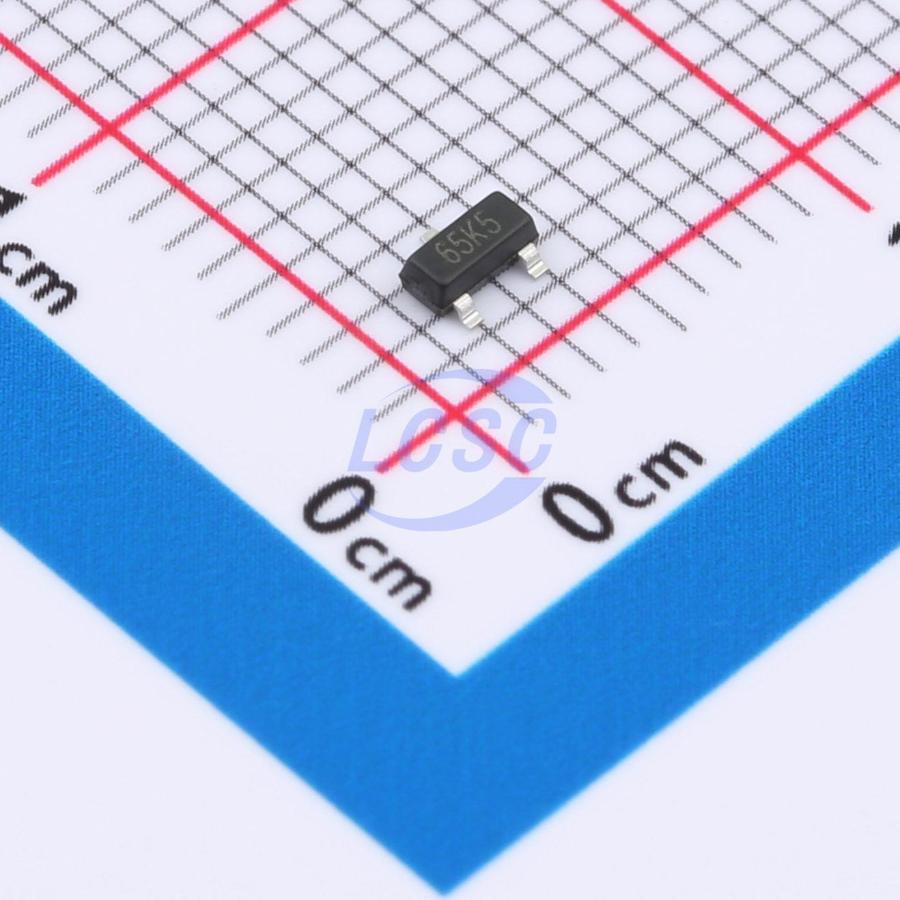

JTD6206-18
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
300mA Low Power LDO
- Manufacturer
- JTD
- Manufacturer part #
- JTD6206-18
- Store part #
- C42443424
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,000 in stock
#C42443424
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.02 | ₹101.00 |
| 500+ | ₹1.59 | ₹795.00 |
| 3,000+ | ₹1.34 | ₹4,020.00 |
| 6,000+ | ₹1.19 | ₹7,140.00 |
| 24,000+ | ₹1.06 | ₹25,440.00 |
| 51,000+ | ₹0.9923 | ₹50,607.30 |
50 × ₹2.02
₹101.00
excl. GST
₹119.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTD6206-18
₹101.00 for 50 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.037 g
Overview
6206 series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The 6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter's foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. 6206 series are available in SOT - 23、SOT23 - 3 and SOT - 89 packages.
Applications
- Battery - powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Low power consumption
- Low Quiescent Current: 3uA at 6V
- Low voltage drop
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
