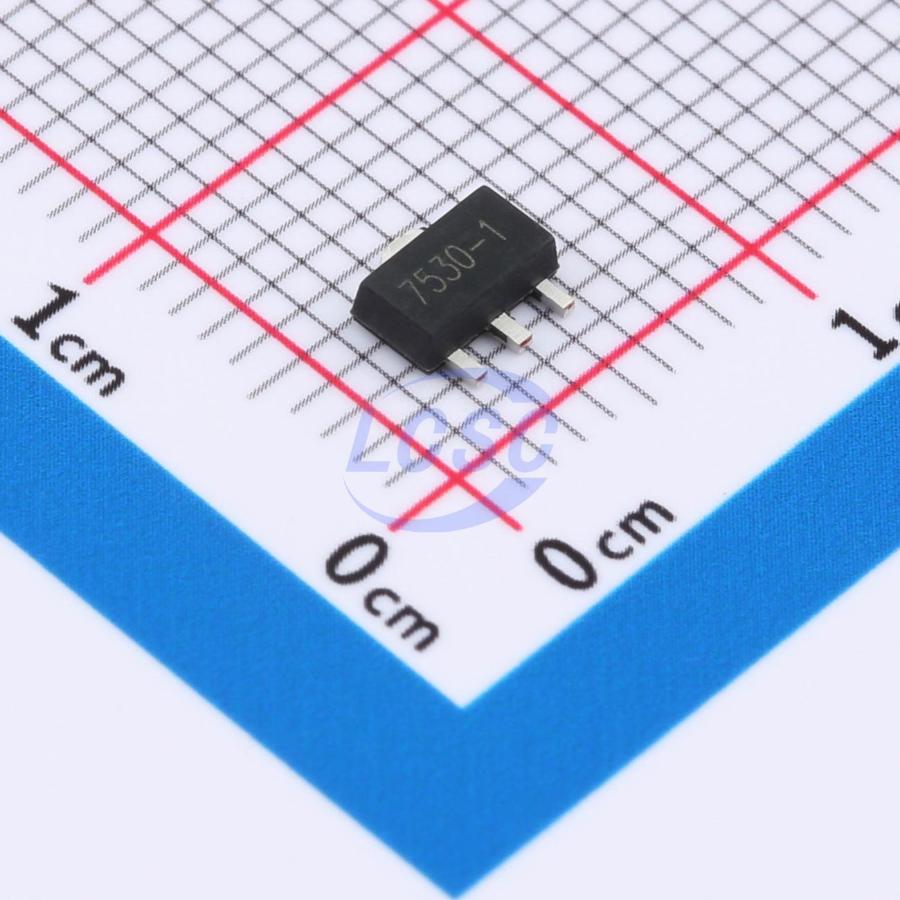

JTD7530
Linear Voltage Regulator IC Fixed 100mA SOT-89-3L
SOT-89-3LROHS CompliantActive
IC REG LINEAR 3V 100mA SOT-89-3L
- Manufacturer
- JTD
- Manufacturer part #
- JTD7530
- Store part #
- C42442690
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,660 in stock
#C42442690
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.59 | ₹71.80 |
| 200+ | ₹3.11 | ₹622.00 |
| 1,000+ | ₹2.84 | ₹2,840.00 |
| 2,000+ | ₹2.69 | ₹5,380.00 |
| 10,000+ | ₹2.54 | ₹25,400.00 |
| 20,000+ | ₹2.47 | ₹49,400.00 |
20 × ₹3.59
₹71.80
excl. GST
₹84.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
JTD7530
₹71.80 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.159 g
Overview
The 75XX series is a low dropout linear regulator utilizing CMOS technology. It supports a maximum operating voltage of 24V and offers multiple fixed output voltage options ranging from 2.8V to 9.0V. The device features ultra-low quiescent current consumption, making it widely used in power supply applications for audio/video equipment and communication devices.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Small temperature drift coefficient
- Maximum operating voltage up to 24V, withstand voltage 30V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
