JTDDatasheet (PDF)

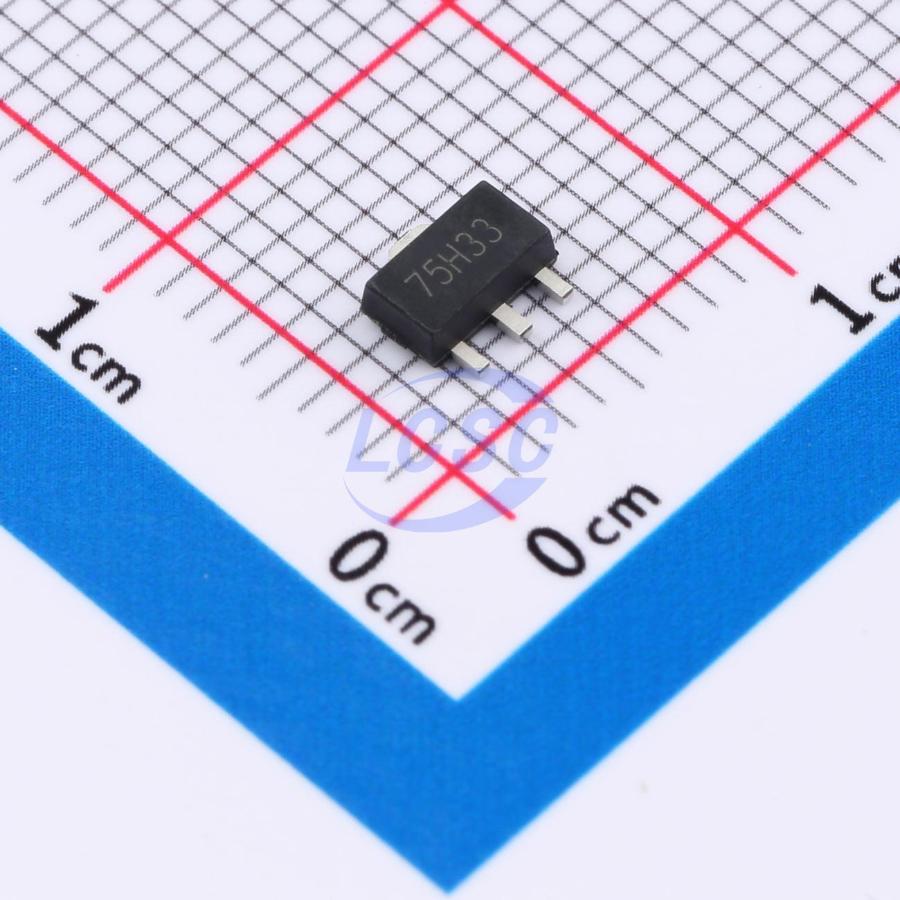

JTD7533H
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89
SOT-89ROHS CompliantActive
Low-dropout linear regulator with 250 mA output current, 50 V withstand voltage, and low quiescent current
- Manufacturer
- JTD
- Manufacturer part #
- JTD7533H
- Store part #
- C42442689
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,080 in stock
#C42442689
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.32 | ₹63.20 |
| 100+ | ₹4.99 | ₹499.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 1,000+ | ₹3.82 | ₹3,820.00 |
| 5,000+ | ₹3.43 | ₹17,150.00 |
| 10,000+ | ₹3.23 | ₹32,300.00 |
10 × ₹6.32
₹63.20
excl. GST
₹74.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
JTD7533H
₹63.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 50V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.155 g
Overview
The 7533H is a low-dropout linear regulator built on CMOS technology. It features a 50V voltage rating, a 3.3V output voltage, 250mA output current capability, and low quiescent current consumption. The device incorporates output short-circuit protection and reduces output current when junction temperature is excessive to prevent system failure, making it widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Small temperature drift coefficient
- 50V withstand voltage
- Typical quiescent current 2.0μA
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current derating when junction temperature exceeds 120℃
- ESD HBM exceeds 2500V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JTD75U33#C42443408JTD · SOT-89 | JTD | SOT-89 | On request | Price on request | Quote |
