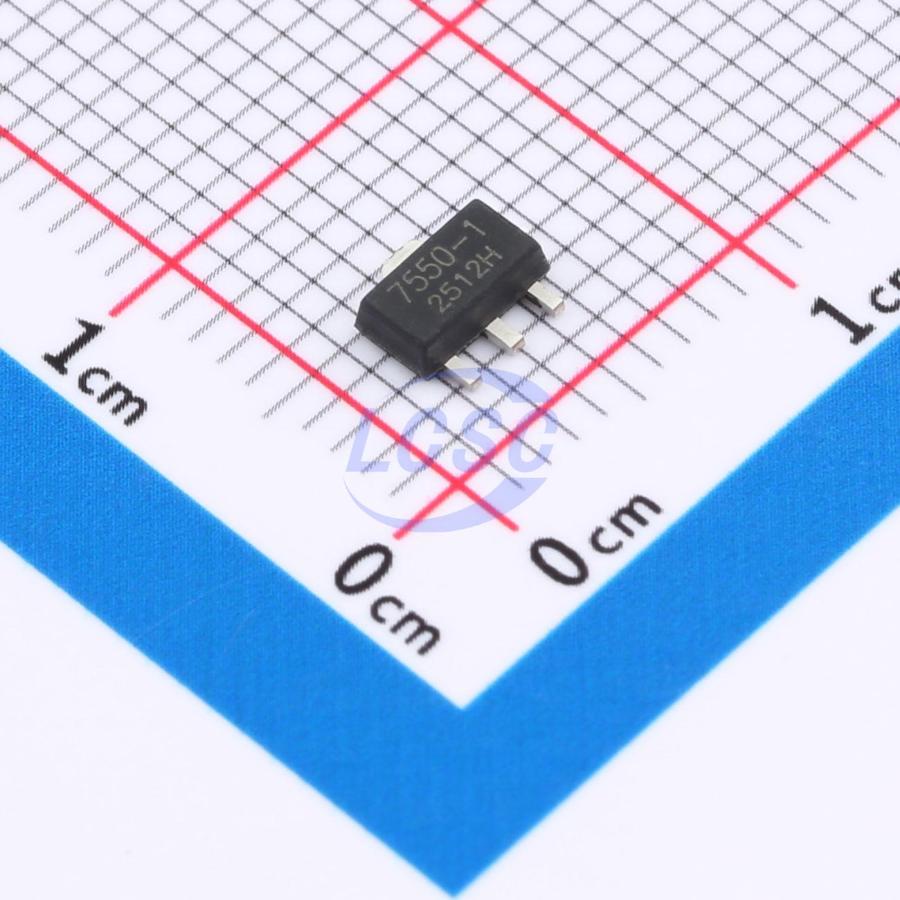

JTD7550H
5V Positive Fixed SOT-89-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3LRoHSActive
IC REG LINEAR 5V 250mA SOT-89-3L
- Manufacturer
- JTD
- Manufacturer part #
- JTD7550H
- Store part #
- C49308261
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,680 in stock
#C49308261
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.72 | ₹67.20 |
| 100+ | ₹5.38 | ₹538.00 |
| 300+ | ₹4.72 | ₹1,416.00 |
| 1,000+ | ₹4.22 | ₹4,220.00 |
| 5,000+ | ₹3.82 | ₹19,100.00 |
| 10,000+ | ₹3.63 | ₹36,300.00 |
10 × ₹6.72
₹67.20
excl. GST
₹79.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
JTD7550H
₹67.20 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.159 g
Overview
The JTD7550H is a CMOS-based low-dropout linear regulator with a 50V voltage rating, 5.0V output voltage, and 250mA output current capability. The device features low quiescent current consumption and integrated output short-circuit protection. When junction temperature becomes excessive, the output current is automatically reduced to prevent system breakdown. This product is widely used in power supply applications for various audio, video, and communications equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- 50V withstand voltage
- Typical quiescent current 2.0μA
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current derating when junction temperature exceeds 120℃
- ESD HBM exceeds 2500V
