JTDDatasheet (PDF)

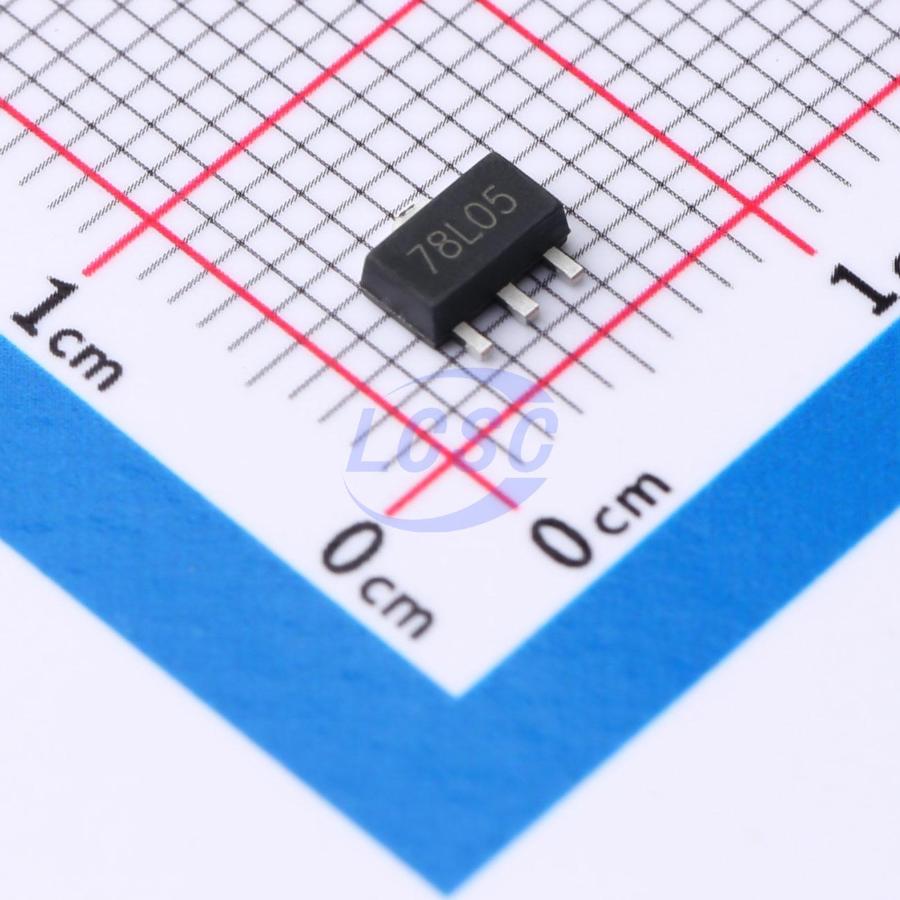

JTD78L05C
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3L
SOT-89-3LROHS CompliantActive
Plastic-Encapsulate Voltage Regulators
- Manufacturer
- JTD
- Manufacturer part #
- JTD78L05C
- Store part #
- C42443413
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,440 in stock
#C42443413
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.72 | ₹94.40 |
| 200+ | ₹3.69 | ₹738.00 |
| 1,000+ | ₹3.12 | ₹3,120.00 |
| 2,000+ | ₹2.78 | ₹5,560.00 |
| 10,000+ | ₹2.47 | ₹24,700.00 |
| 20,000+ | ₹2.32 | ₹46,400.00 |
20 × ₹4.72
₹94.40
excl. GST
₹111.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
JTD78L05C
₹94.40 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.3mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 35V
- Output Type
- Fixed
- Features
- Input overvoltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.155 g
Overview
78LXX is a fixed-output linear three-terminal voltage regulator with a wide input voltage range. It integrates an internal voltage reference circuit, overvoltage protection, overcurrent protection, and overtemperature protection, ensuring reliable circuit operation. The output stage features low output impedance with an output current capability of up to 100mA. The device exhibits low quiescent current. Available packages include SOT89-3L, SOT23-3L, and TO-92.
Applications
- Instrumentation
- Motherboard Power Supply
- Multi-Channel Power Systems
- Equipment Power Modules
Key features
- Manufactured on 50V process platform
- Fixed output voltage options: 3.3V, 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 24V
- Wide input voltage range: 7-35V (40V)
- Low quiescent current: 2.3mA typical @ 10V
- Output voltage redundancy range ±5% across full voltage, full current, and full temperature
- Stable output current up to 100mA
- Built-in OTP, OVP, and OCP
