JTDDatasheet (PDF)

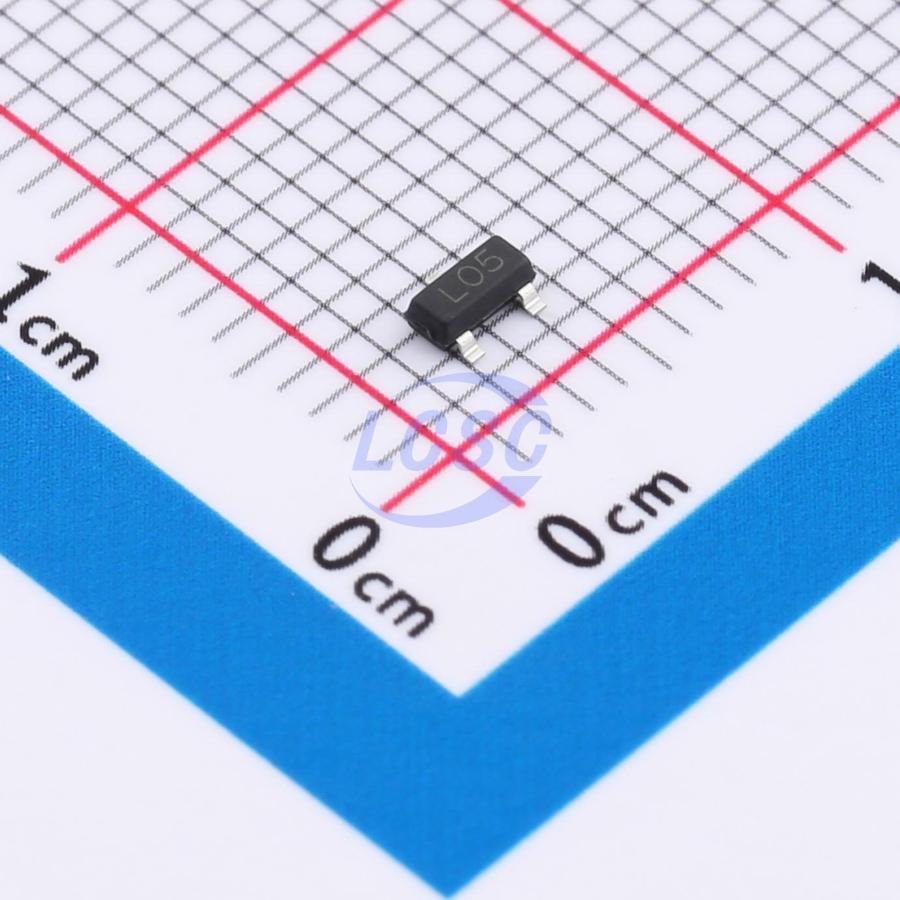

JTD78L05CA
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Plastic-Encapsulate Voltage Regulators
- Manufacturer
- JTD
- Manufacturer part #
- JTD78L05CA
- Store part #
- C42443412
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45,660 in stock
#C42443412
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.73 | ₹74.60 |
| 200+ | ₹2.92 | ₹584.00 |
| 600+ | ₹2.49 | ₹1,494.00 |
| 3,000+ | ₹2.22 | ₹6,660.00 |
| 9,000+ | ₹1.98 | ₹17,820.00 |
| 21,000+ | ₹1.87 | ₹39,270.00 |
20 × ₹3.73
₹74.60
excl. GST
₹88.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTD78L05CA
₹74.60 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.3mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 35V
- Output Type
- Fixed
- Features
- Input overvoltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
The 78LXX is a fixed-output linear three-terminal voltage regulator fabricated on a 50V process platform, featuring a wide input voltage range. It integrates an internal reference voltage circuit along with overvoltage protection, overcurrent protection, and overtemperature protection, ensuring reliable circuit operation. The device's output stage features low output impedance, capable of delivering up to 100mA of output current while maintaining low quiescent current. Available packages include SOT89-3L, SOT23-3L, and TO-92.
Applications
- Instrumentation
- Motherboard Power Supply
- Multi-Channel Power Systems
- Equipment Power Modules
Key features
- Fabricated on 50V process platform
- Fixed output voltage options: 3.3V, 5V, 6V, 9V, 12V, 15V
- Wide input voltage range: 7-35V (40V)
- Low quiescent current: 2.3mA typ @ 10V
- Output voltage tolerance ±5% over full voltage, current, and temperature range
- Stable output current up to 100mA
- Built-in OTP, OVP, and OCP
