JTDDatasheet (PDF)

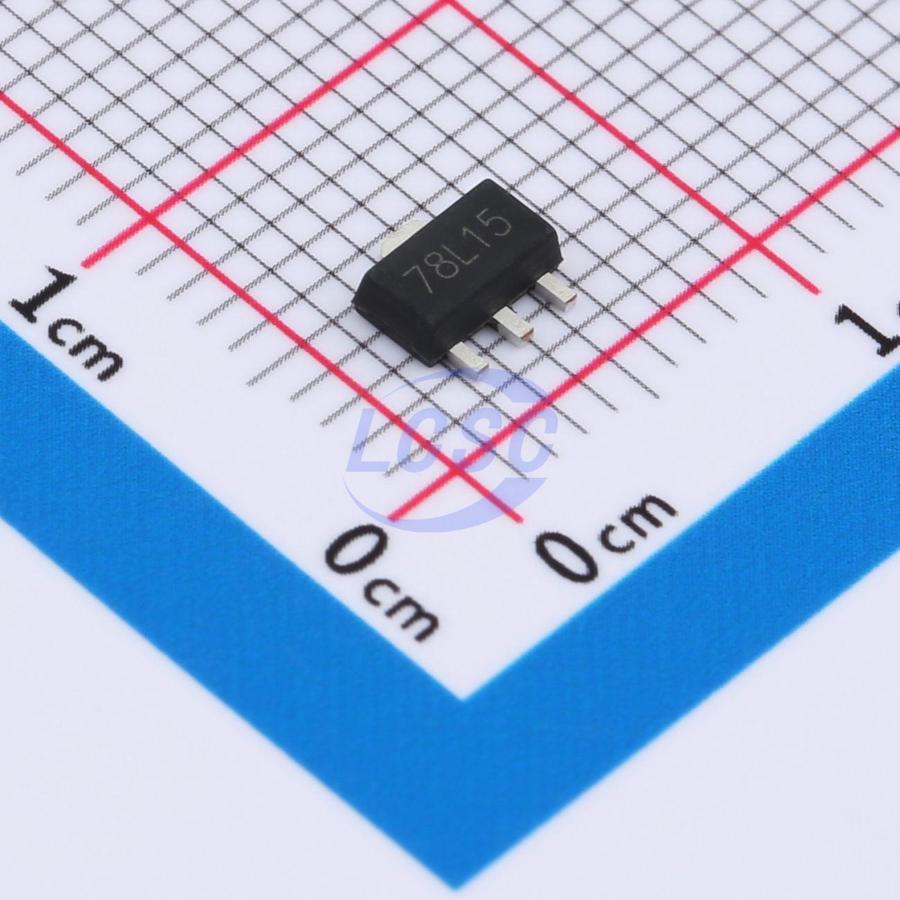

JTD78L15C
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3L
SOT-89-3LROHS CompliantActive
Plastic-Encapsulate Voltage Regulators
- Manufacturer
- JTD
- Manufacturer part #
- JTD78L15C
- Store part #
- C42443418
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C42443418
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.08 | ₹101.60 |
| 200+ | ₹3.96 | ₹792.00 |
| 1,000+ | ₹3.33 | ₹3,330.00 |
| 2,000+ | ₹2.96 | ₹5,920.00 |
| 10,000+ | ₹2.63 | ₹26,300.00 |
| 20,000+ | ₹2.46 | ₹49,200.00 |
20 × ₹5.08
₹101.60
excl. GST
₹119.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
JTD78L15C
₹101.60 for 20 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.1mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 35V
- Output Type
- Fixed
- Features
- Input overvoltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.16 g
Overview
The 78LXXC is a fixed-output linear three-terminal voltage regulator with a wide input voltage range. It integrates a voltage reference circuit, overvoltage protection, overcurrent protection, and overtemperature protection to ensure reliable operation. The output stage features low output impedance with an output current of up to 100mA. The device offers low quiescent current. Available in SOT89-3L, SOT23-3L, or TO-92 packages.
Applications
- Instrumentation
- Motherboard Power Supply
- Multi-Channel Power Systems
- Equipment Power Modules
Key features
- Manufactured on 50V process platform
- Fixed output voltage options: 3.3V, 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 24V, 33V
- Wide input voltage range: 7 - 35V (40V) input
- Low quiescent current: typical 2.3mA@10V
- Output voltage tolerance ±5% across full voltage, full current, and full temperature range
- Stable output current up to 100mA
- Built-in over-temperature protection, over-voltage protection, and over-current protection
