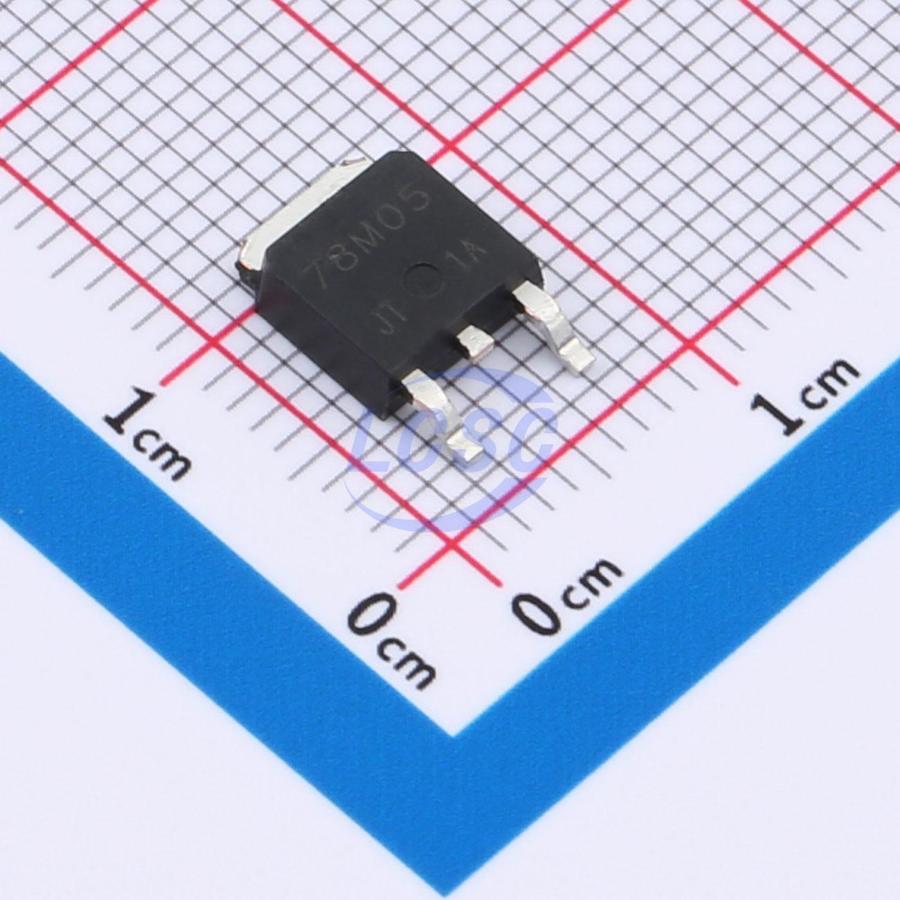

JTD78M05
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-3
TO-252-3ROHS CompliantActive
Fixed-output linear three-terminal voltage regulator circuit
- Manufacturer
- JTD
- Manufacturer part #
- JTD78M05
- Store part #
- C42443421
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,145 in stock
#C42443421
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.30 | ₹61.50 |
| 50+ | ₹9.72 | ₹486.00 |
| 150+ | ₹8.44 | ₹1,266.00 |
| 500+ | ₹7.47 | ₹3,735.00 |
| 2,500+ | ₹6.69 | ₹16,725.00 |
| 5,000+ | ₹6.31 | ₹31,550.00 |
5 × ₹12.30
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
JTD78M05
₹61.50 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.3mA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Input overvoltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.477 g
Overview
78MXX is a fixed-output linear three-terminal voltage regulator with a wide input voltage range. It integrates an internal reference voltage circuit, overvoltage protection, overcurrent protection, and overtemperature protection to ensure reliable operation. The output stage features low output impedance, capable of delivering up to 1A of output current. This IC has low quiescent current and comes in a TO-252-3 package.
Applications
- Instrumentation
- Motherboard Power Supply
- Multi-Channel Power Systems
- Equipment Power Modules
Key features
- Fabricated on 50V process platform
- Fixed output voltage options: 5V, 9V, 12V, 15V
- Wide input voltage range: 7V~40V; 50V withstand voltage
- Low quiescent current: 2.3mA typ @ 10V
- Output voltage accuracy ±5% over full voltage, current, and temperature range
- Stable output current up to 1A
- Built-in over-temperature, over-voltage, and over-current protection
